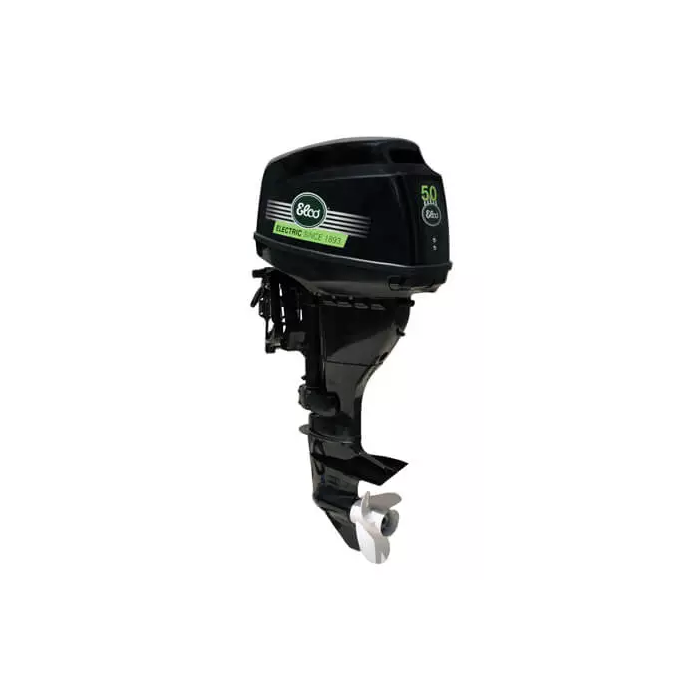

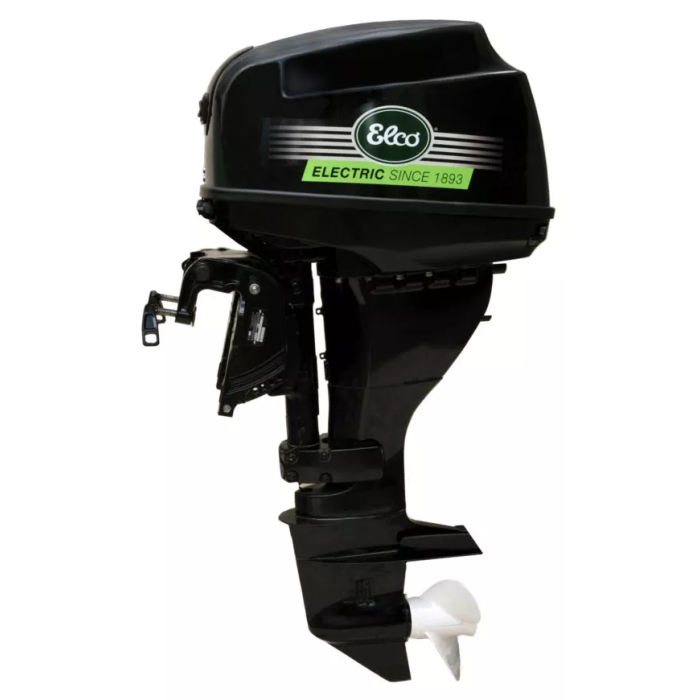

Elco EP-50 Electric Outboard Motor

New Elco EP-50 Electric Outboard Motor

SPECIFICATIONS
* Comparable Gas/Petrol Rating: 50 hp
* Input Power (Watts): 26,400 watts
* Voltage: 96 VDC
* Maximum Current: 275 amps DC
* Motor: Brushless PMAC
* Static Thrust: 975 lb
* Cooling System: Water Cooled
* Throttle System: Remote control or Tiller option
* Throttle: Side mount or Top mount option, 16′ length
* Throttle Cable Extension (Optional): 6’
* Lower Unit Gear Ratio: 2.08:1 (27/13)
* Gear Oil Capacity: 8.5 ounces
* Trim and/or Tilt: Manual or Electric
* Propeller: 3- 9.875″ x 12
* Weight: 190 lbs
* Short Shaft Transom Height: 17.5″
* Short Shaft Overall (Height, Width, Length): 45.4″ x 14.8″ x 27.7″
* Long Shaft Transom Height: 22.5″
* Long Shaft Overall (Height, Width, Length): 50.4″ x 14.8″ x 27.7″
