Yanmar 3JH5E Marine Diesel Engine 39-HP

$5,395.00

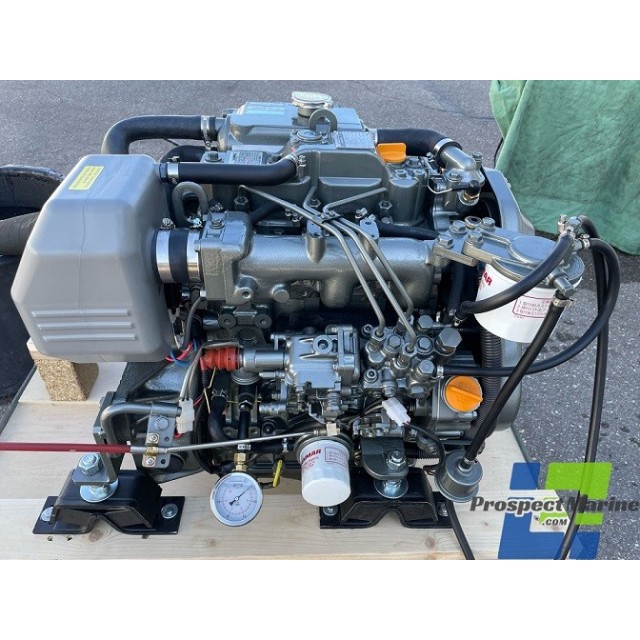

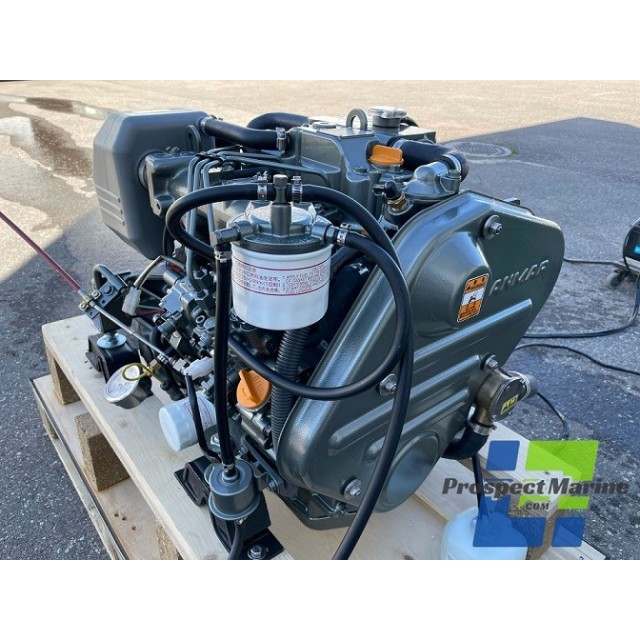

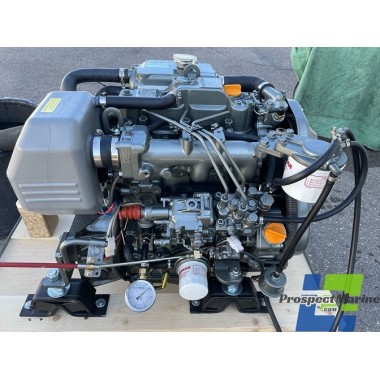

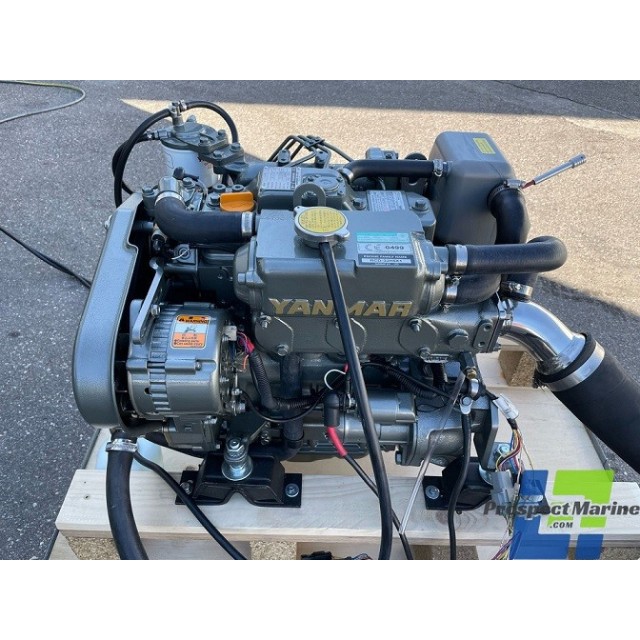

New (Old Stock) Yanmar 3JH5E Marine Diesel Engine 39-HP For Sale

Quantity
Add to wishlist

  Security

Guarantee Safe & Secure Checkout

  Shipping & Tax

We Ship Worldwide - No Sales Tax

  Estimated Delivery

Usually dispatched within 24 - 48 hours

New Yanmar 3JH5E 39hp Bobtail Unit 3000 RPM, Closed fresh water cooling

Specification:

  • Rated Output: 28.7 kW / 39 mhp @ 3 000 rpm
  • Displacement: 1.642 L (100 cu in)
  • Number of Cylinders: 3 (in-line, 4-stroke, water-cooled)
  • Bore × Stroke: 88 mm × 90 mm (3.46 × 3.54 in)
  • Aspiration: Naturally aspirated
  • Combustion System: Direct injection, mono plunger pump
  • Rated Speed: 3000 rpm
  • Dry Weight (without gear): 173 kg (381 lb)
  • Dimensions (L × W × H): 776 × 560 × 623 mm
  • Alternator: 12 V – 125 A
  • Controls: Mechanical
  • Certifications: RCD 2, EPA Tier 2, BSO II, EMC

Performance & Operation

  • Continuous Output: Around 26.1 kW (≈ 35 mhp) @ 2 907 rpm
  • Combustion & Cooling: Uses a centrifugal freshwater pump and rubber-impeller seawater pump

Package Included: Bobtail unit, wiring loom, standard size pistons with rings, standard size crankshaft bearings, all gaskets, oil seals, filters, bearings, belts, all injector valve nozzles, water pump kit including shaft and impeller, cooling water external tank, dash panel with RPM meter.

Data sheet

Brand
Yanmar
Condition
New
Engine (HP)
39 HP
Warranty
3-Year

Built to Order Engines

Built To Order engines are built exclusively for you, hence delivery is dependent on build time. Contact us using the form below to enquire about lead times for building your engine & estimated delivery times.

In Stock Engines

In stock engines are ready built and available for immediate dispatch subject to any custom configuration requirements.

The fee for shipping depends on your location and any additional configuration requested. Please submit an enquiry using the form below and we’ll contact you to discuss options and confirm the final price based on your requirements.
