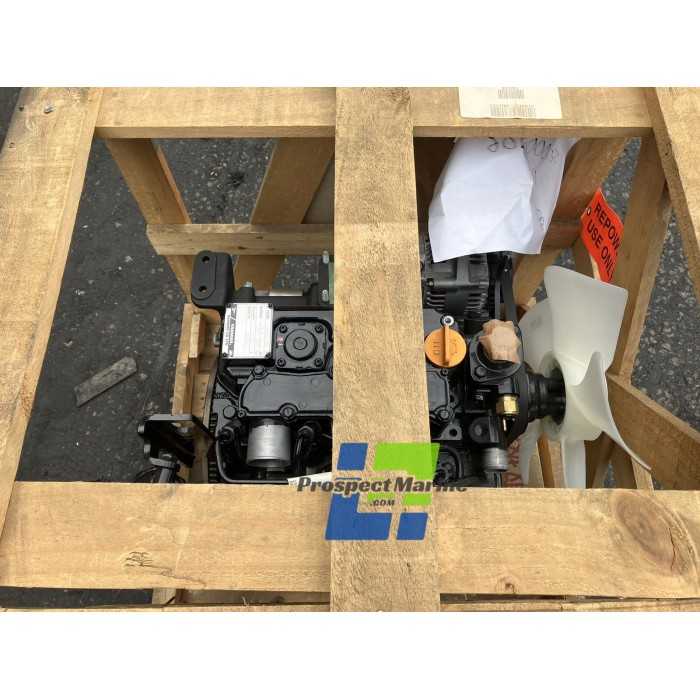

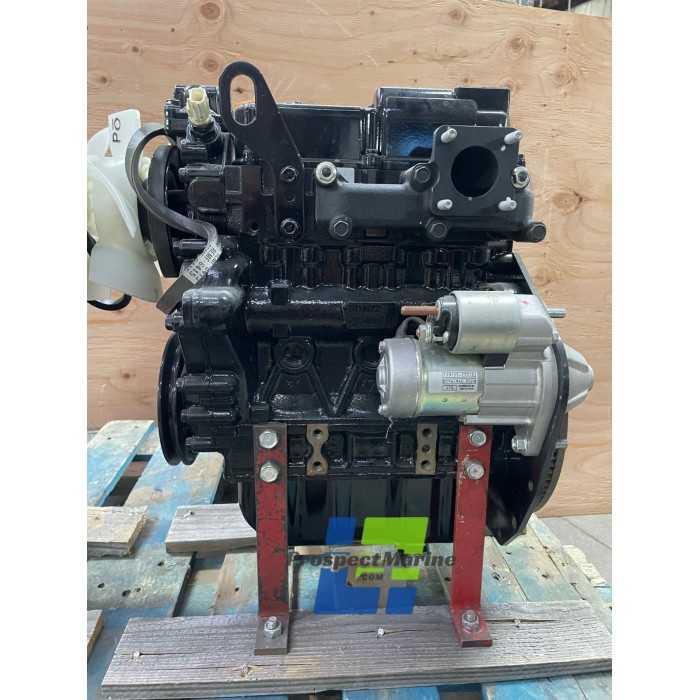

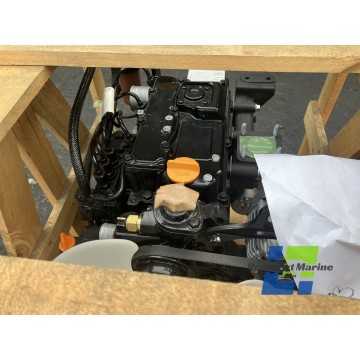

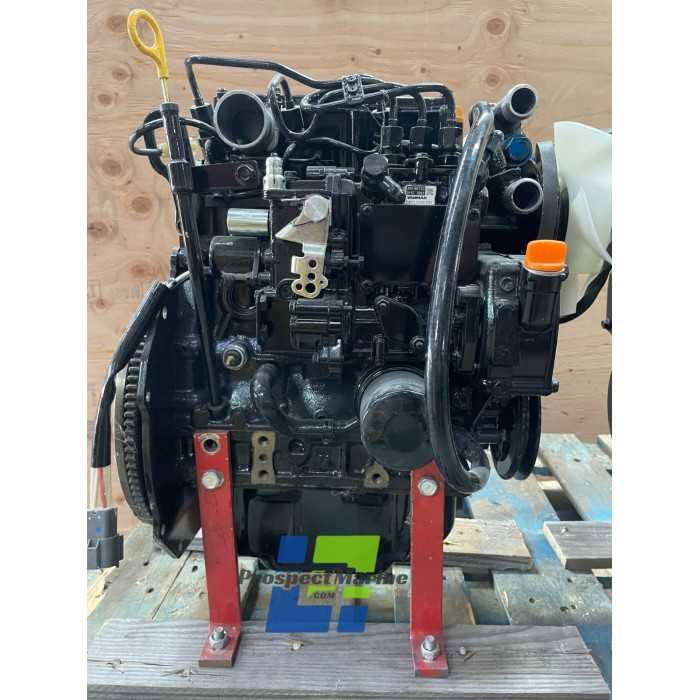

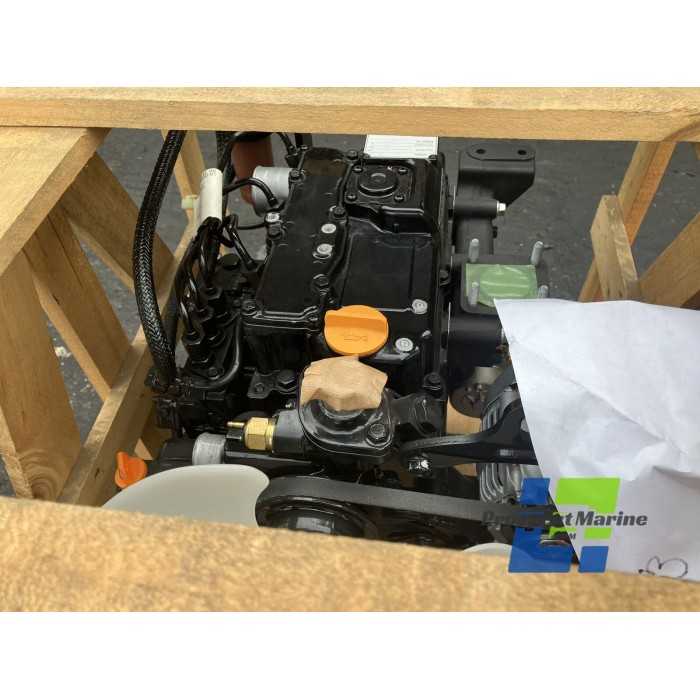

Yanmar 3TNM72-APB Marine Diesel Engine

2009 Yanmar 3TNM72-APB Marine Diesel Engine 25-HP
The Yanmar 3TNM72-APB is a 3-cylinder, 4-cycle, naturally aspirated, vertical, water-cooled diesel engine with indirect fuel injection. It has a displacement of 0.903 liters, a bore of 72mm, and a stroke of 74mm. The engine produces a maximum power output of 18.2 kW (24.4 HP) at 3600 RPM and a standby output of 15.9 kVa.

Specifications
* Applicable Manufacturer: Polaris
* Engine Model: 3TNM72-APB
* Equipment Type: Utility Vehic
* Engine Type: Vertical In-line 4-cycle Water-cooled Diesel Engine
* Combustion Chamber: Spark Ignition Engine Type
* Air Intake System: Natural Aspiration
* Bore: 2.8 in.
* Stroke: 2.9 in.
* Displacement: 55.1 cu in.
* Rated Speed: 3600 RPM
* Specific Fuel Consumption: <= 323 ( 238)
* Compression Ratio: 23.5 (effective 21.6)
* Fuel Injection Timing: 0 +1.0/-1.0 Fic(n2 20.5+1.0/-1.0 Fir 10.5+1.0/-1.0 Fid 20
* Fuel Injection Pressure: 12.7 +1.0/ 0 (129.5 +10.2/ 0.00)
* Rotation Direction: Viewed From Flywheel Side Left
* Governor: Centrifugal All Speed Engine Type
* Cooling System: Radiator Cooling
* Lubricating System: Forcible Lubrication By Trochoid Pump
* Starter: Electric Startin(starting Motor 12vdc-1.2kw)
* Charger: N/A
* Oil Capacity: 0.7 gal. 0.2 gal.
* Coolant Capacity: 0.3 gal.
* Flywheel: 265ID mark 5C03
* Oil Press Switch: 7.3 psi
* Fuel Filter: Water Separator N
