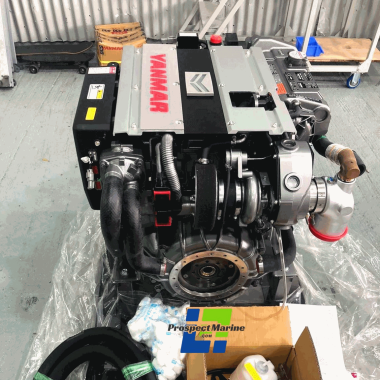

Yanmar 4LV250 Inboard Marine Diesel Engine 250 HP

Selling Yanmar 4LV 250 Inboard Diesel Marine Engine 250 HP For Sale with Warranty

The 4LV series engine raises the standard for engines in its class, with exceptionally low noise and vibration alongside the 2.8 L displacement delivering powerful low-end torque and stunning acceleration.  By exceeding the strict EPA Tier 3 and EU RCD Stage 2 emissions regulations, the engines feature a virtually odour-free and smoke-free operation. Direct connectivity to NMEA and J1939 CAN-bus networks has been purpose engineered into the 4LV range, allowing future-proofed integration to any multifunction bridge display.

Over and above the impressive performance, the resounding benefit of the 4LV Series remains its versatility, with all models available with multiple shaft and jet drive options and the durable sterndrive. Fulfilling needs across all boating applications, it is the perfect solution for new builds and repowering.

4 Cylinder, 2.75-liter diesel engine, Turbocharged, Gears - KMH50A / KMH50V, Stern Drive - ZT370

Product Information

The 4LV proves to be an extremely efficient engine without any compromise on quality. Featuring the newest system in common-rail technology, the mid-range engines deliver maximum performance and reliability, while maintaining minimal fuel consumption and exceptionally low noise & emission levels. By exceeding the strict EPA Tier 3 and EU RCD Stage 2 emission regulations, the engines feature virtually smoke and odor free operation.

Equally, the 4LV doesn’t disappoint in performance. The 2.8 L displacement delivers a powerful low-end torque performance. This results in a stunning acceleration and really sets these engines apart from others in their power range.

Specifications:

• Rated Output : 184 kW / 250 mhp
• Rated Speed : 3800 rpm
• Displacement : 2.755 L / 168 cu. in
• No. of cylinders : 4 cylinders
• Cylinder Bore x Stroke : 92 mm x 103.6 mm / 3.6 in x 4 in
• Combustion system : Direct Injection, Denso Common Rail System
• Aspiration : Turbocharged & Intercooled
• Alternator : Denso 12V - 130A
• Dry weight without gear : 334 kg / 736 lbs
• Dimensions : 1151 mm x 755 mm x 772 mm
• Controls : Mechanical (optional - VC10 system)
• Certifications : RCD 2 IMO Tier 2 EPA Tier 3 BSO II EMC SOLAS

Package Includes:

• New Yanmar 4LV250 Engine
• Gearbox: KMH50A / KMH50V
• Exhaust mixing elbow [L-type]
• Alternator 12V – 130A
• C35 panel
• VC10 Vessel Control System
• Mechanical throttle sensor
• Flexible mounts
• Fresh water expansion tank
• NMEA2000 Engine monitoring system
• Extension harness 10m

Optional Accessories

• High-riser mixing elbow [instead of L-elbow]
• Through hull exhaust
• Secondary alternator 12V – 130A or 24V – 110A including smart regulator
• Extension harness [3m, 5m, 10m, 20m]
• Second station
• C35 panel
• Sidemount control head
• VC10 Vessel Control System
• JC20 Inboard Joystick
• JC10 Sterndrive Joystick
• NMEA2000 Engine monitoring system
• Internal tie-bar
• Semi 2-pole
• SOLAS including Certificate [factory fit only]
• Hot water connection
• Water separator
• Man Over Board Switch (single)
• C-Type trolling (KMH50 only)
• On-board spare parts kit
