Caterpillar C3.6 Turbo Diesel Engine
$6,450.00
New 2022 Caterpillar C3.6 Turbo Diesel Engine 134-HP For Sale
SecurityGuarantee Safe & Secure Checkout
Shipping & TaxWe Ship Worldwide - No Sales Tax
Estimated DeliveryUsually dispatched within 24 - 48 hours

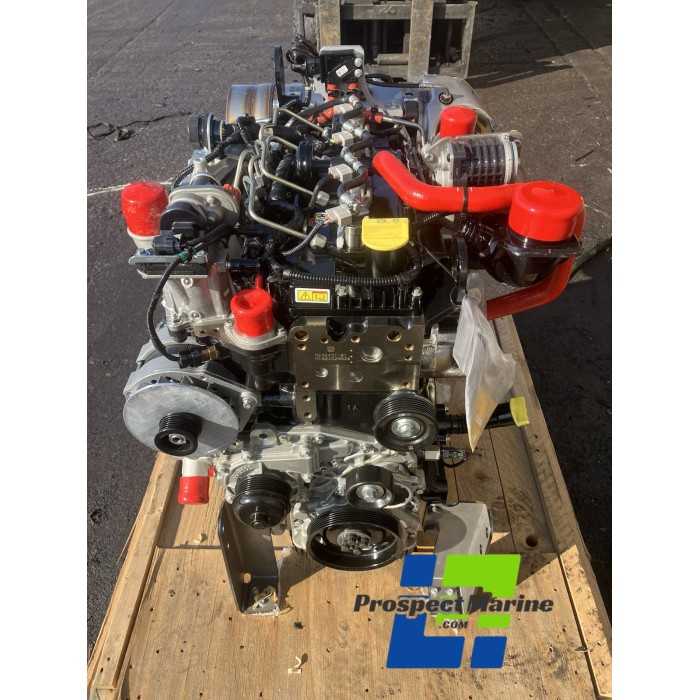

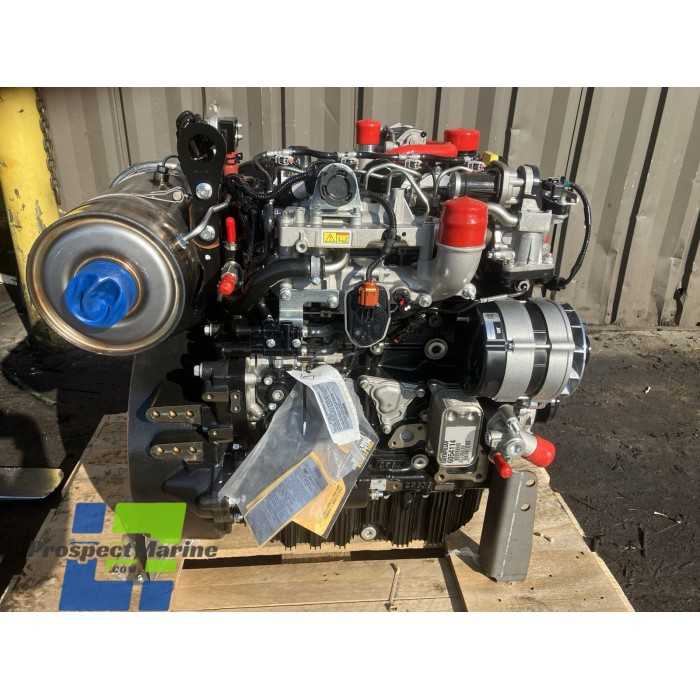

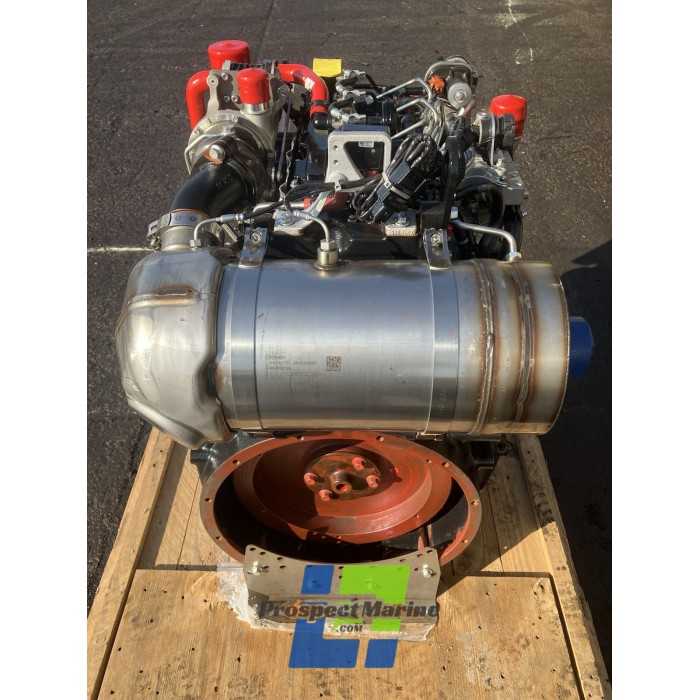

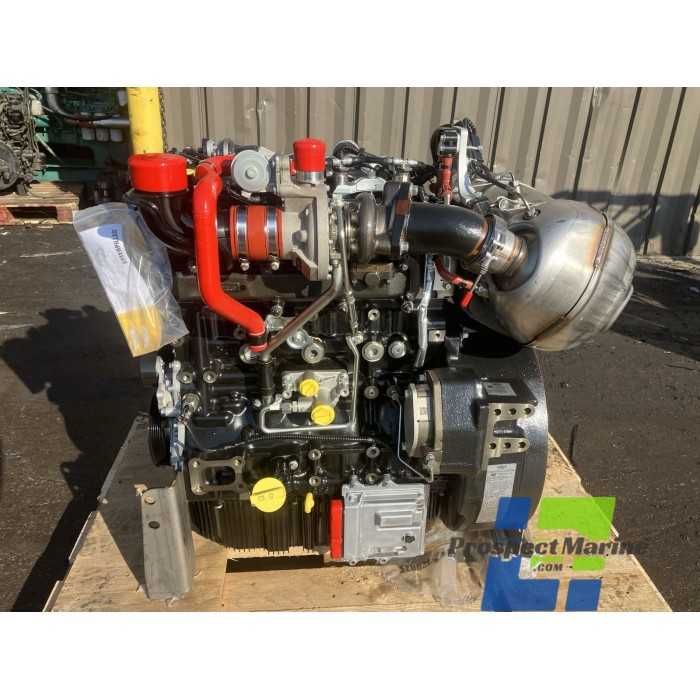

New 2022 Caterpillar C3.6 turbo diesel engine, arrangement # 605-4114 (6054114,) 134 HP at 2200 RPM rating, Tier 4 final emissions.
The Caterpillar C3.6 Turbo Diesel engine, rated at 134 horsepower, features a 3.6-liter displacement, in-line 4-cylinder configuration, and is turbocharged and aftercooled (TA). It produces a maximum torque of 391 lb-ft at 1500 rpm and has a rated speed range of 2000-2400 rpm. The engine is designed for various applications, including agricultural tractors, and meets emissions standards like EU Stage V and U.S. EPA Tier 4 Final.
Specifications
* Maximum Power: 134 hp (100 kW)
* Maximum Torque: 391 lb-ft (530 Nm) @ 1500 rpm
* Rated Speed: 2000-2400 rpm
* Minimum Power: 74 hp (55 kW)
* Engine Configuration: In-line 4, 4-stroke-cycle
* Displacement: 3.6 L (220.9 in³)
* Aspiration: Turbocharged-Aftercooled (TA)
* Combustion System: Direct Injection
* Compression Ratio: 17:1
* Emissions: Meets EU Stage V, U.S. EPA Tier 4 Final, and Japan 2014 standards
* Dry Weight: 840 lb (381 kg)
* Dimensions (L x W x H): 26.3 in (667 mm) x 22.2 in (564 mm) x 31 in (787 mm).
Data sheet
- Brand
- Caterpillar
- Condition
- NEW (Old Stock)
- Year
- 2022
- Engine (HP)
- 134 HP
- Warranty
- 1-Year Manufacturer Warranty
Built to Order Engines
Built To Order engines are built exclusively for you, hence delivery is dependent on build time. Contact us using the form below to enquire about lead times for building your engine & estimated delivery times.
In Stock Engines
In stock engines are ready built and available for immediate dispatch subject to any custom configuration requirements.
The fee for shipping depends on your location and any additional configuration requested. Please submit an enquiry using the form below and we’ll contact you to discuss options and confirm the final price based on your requirements.
