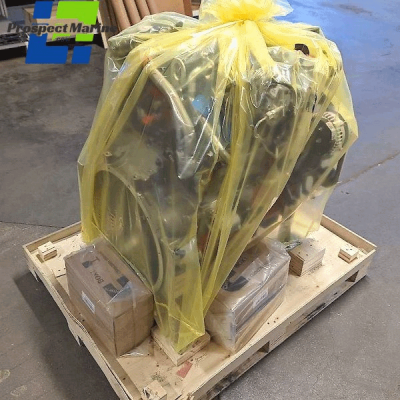

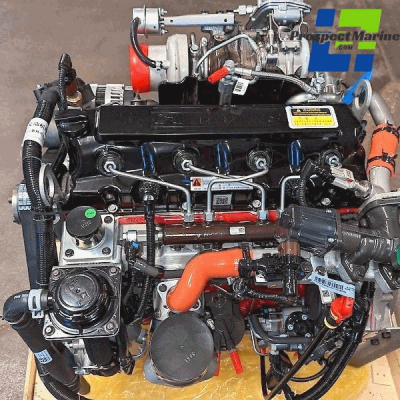

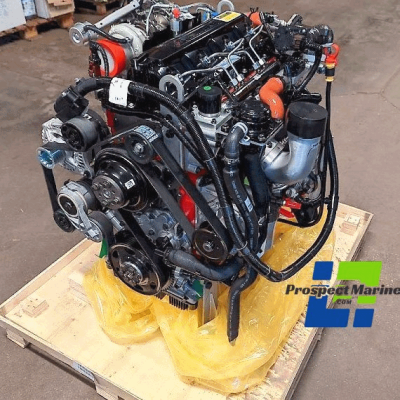

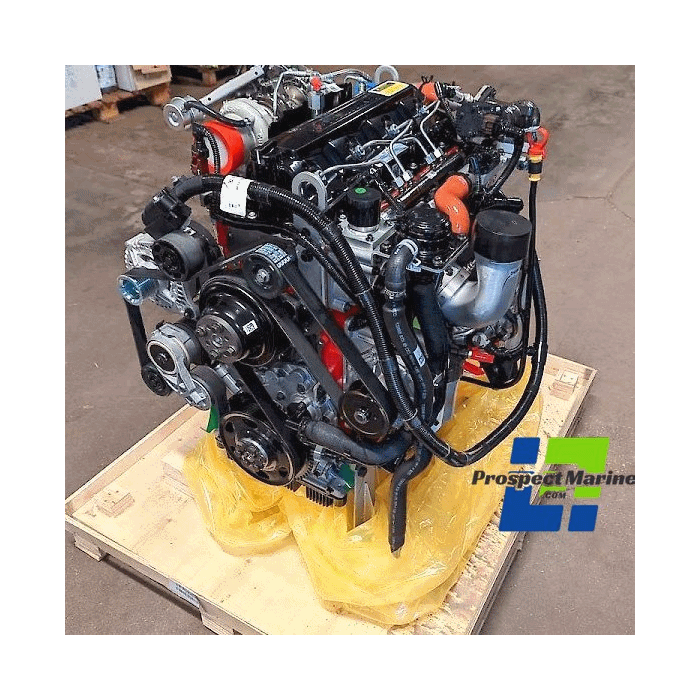

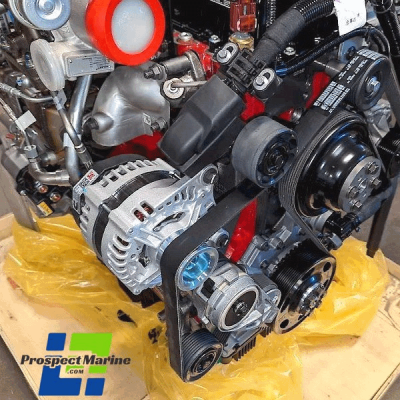

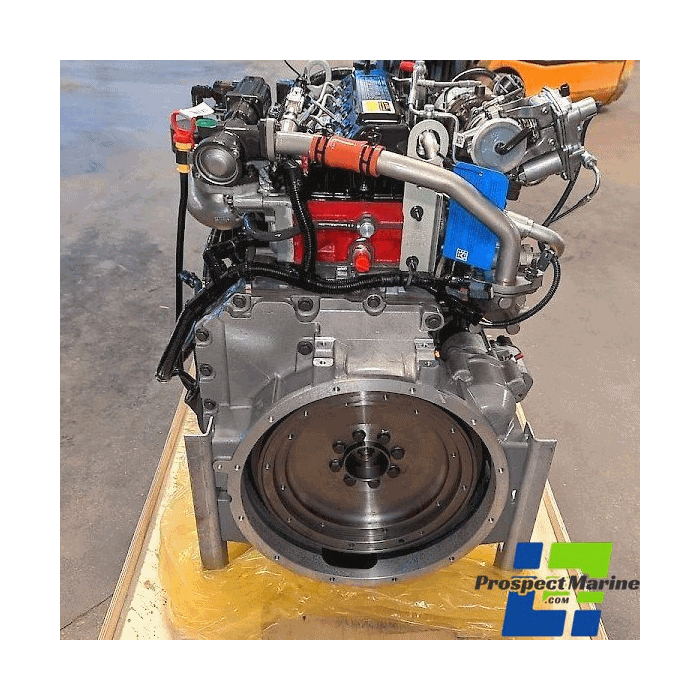

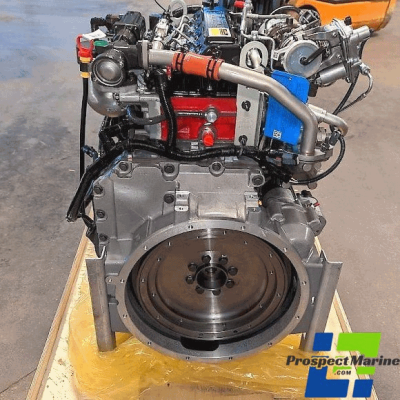

Cummins QSF3.8 130 HP Diesel Engine

Selling New Cummins QSF3.8 130 HP Diesel Engine 97kW (Tier 4 Final/Stage IV)

The Cummins QSF3.8 is a 3.8-liter, inline 4-cylinder diesel engine producing 130 HP (97 kW) at 2500 RPM, designed for off-highway applications. It meets EPA Tier 4 Final/EU Stage IV emissions regulations using Selective Catalytic Reduction (SCR) technology, high-pressure common rail fuel system, and a wastegated turbocharger, providing high torque (360 lb-ft or 488 Nm) and high power in a compact package.

Engine Specifications

• Engine Type: 4-cycle, turbocharged, and charge air cooled inline 4-cylinder.
• Rated Power: 130 hp (97 kW) at 2500 RPM.
• Peak Torque: 360 lb-ft (488 Nm) at 1600 RPM.
• Displacement: 3.8 liter.
• Bore & Stroke: 4.02 in x 4.53 in (102 mm x 115 mm).
• Compression Ratio: 17.2:1.
• Aspiration: Wastegated Turbocharged / Charge Air Cooled
• Emissions : EPA Tier 4 Final / EU Stage IV

Applications:

• Construction Equipment (Cranes, Excavators, Wheel Loaders, Dozers, Compactors, and Forklifts.)
• Agricultural Machinery (Tractors, Sprayers) and specialized farm machinery & harvesting equipment.
• Industrial: Industrial Power Units, Prime power for air compressors, pumps, and mobile generators.
