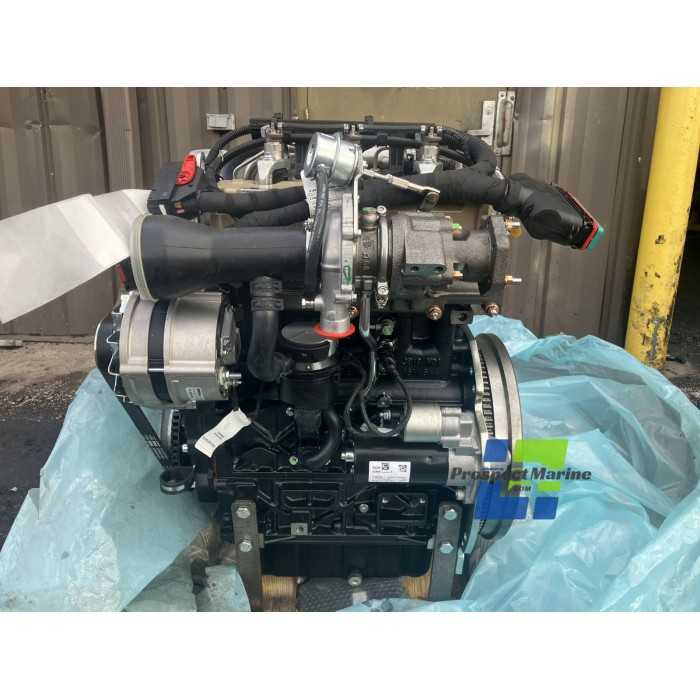

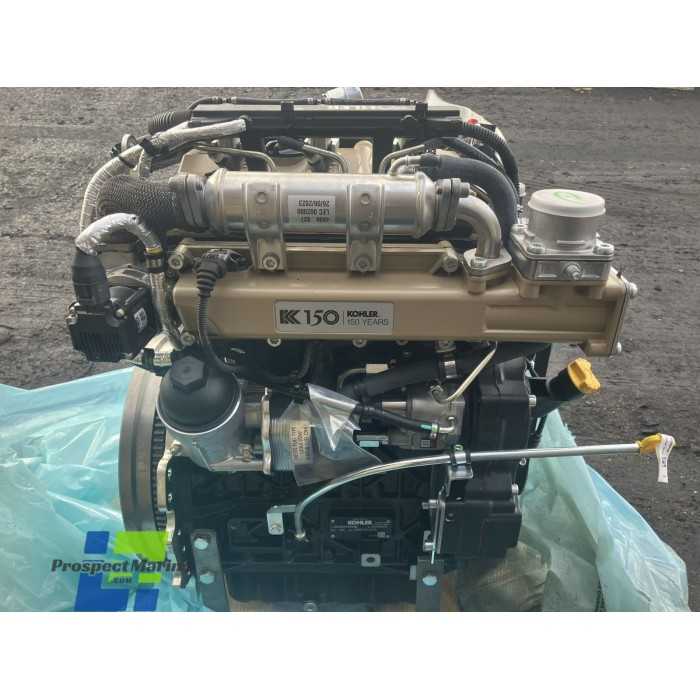

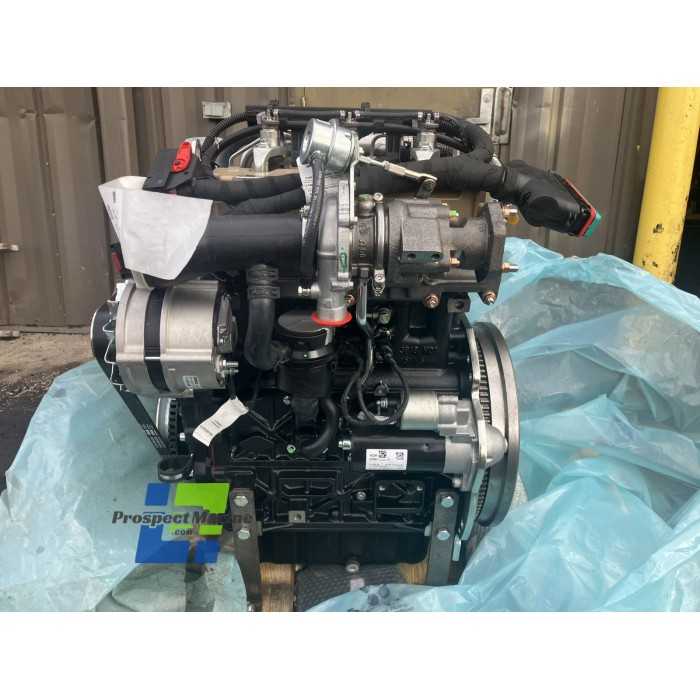

Kohler KDI 1903 TCR Diesel Engine
$3,795.00
Selling New Kohler KDI 1903 TCR Diesel Engine
SecurityGuarantee Safe & Secure Checkout
Shipping & TaxWe Ship Worldwide - No Sales Tax
Estimated DeliveryUsually dispatched within 24 - 48 hours
The Kohler KDI 1903TCR is a 3-cylinder, 1.9-liter diesel engine featuring a common rail fuel injection system, turbocharging, and liquid cooling. It is designed for various applications, including industrial, agricultural, and construction machinery. The engine delivers 42 kW (56 hp) at 2600 rpm, with a torque of 225 Nm at 1500 rpm.
Specifications
* Engine Type: 4-stroke, in-line 3-cylinder diesel engine
* Displacement: 1861 cm³
* Bore: 88 mm
* Stroke: 102 mm
* Power: 42 kW (56 hp) @ 2600 rpm
* Torque: 225 Nm @ 1500 rpm
* Fuel System: Direct injection, Common Rail
* Aspiration: Turbocharged with wastegate valve
* Cooling: Liquid-cooled
* Valves: 4 valves per cylinder with hydraulic tappets
* Oil Capacity: 8.9 liters (including oil filter)
* Dry Weight: 277 kg
* Emissions: Tier 4 Final / Stage III B
* Applications: Industrial machinery, agricultural equipment, construction equipment, etc.
Data sheet
- Condition
- New
- Model Number
- KDI 1903TCR
- Engine (HP)
- 56 HP
- Warranty
- 3-Year Limited Warranty
Built to Order Engines
Built To Order engines are built exclusively for you, hence delivery is dependent on build time. Contact us using the form below to enquire about lead times for building your engine & estimated delivery times.
In Stock Engines
In stock engines are ready built and available for immediate dispatch subject to any custom configuration requirements.
The fee for shipping depends on your location and any additional configuration requested. Please submit an enquiry using the form below and we’ll contact you to discuss options and confirm the final price based on your requirements.
