Yanmar 4TNV84T Turbo Diesel Engine

Selling New Yanmar 4TNV84T Turbo Diesel Engine For Sale with Warranty

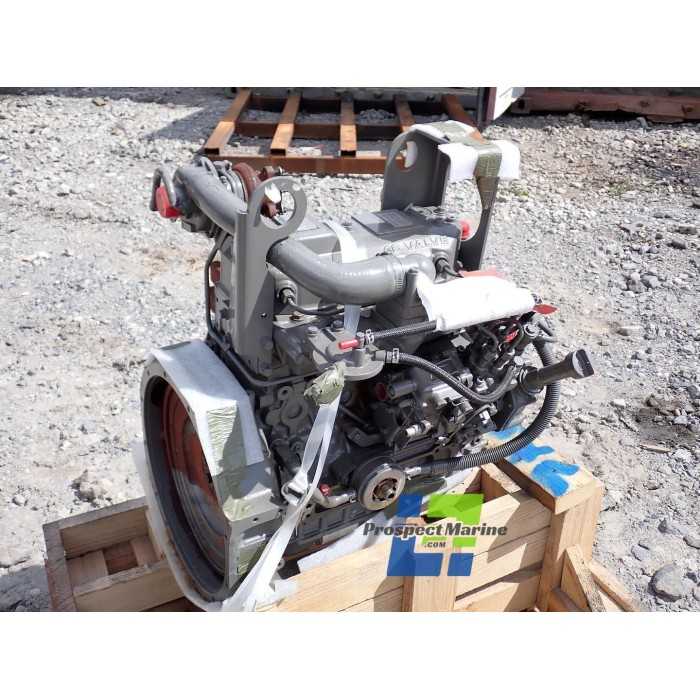

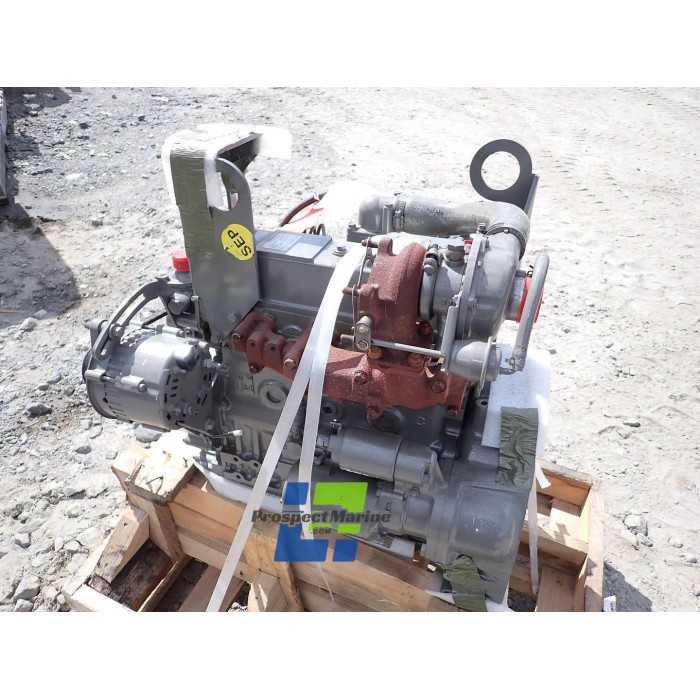

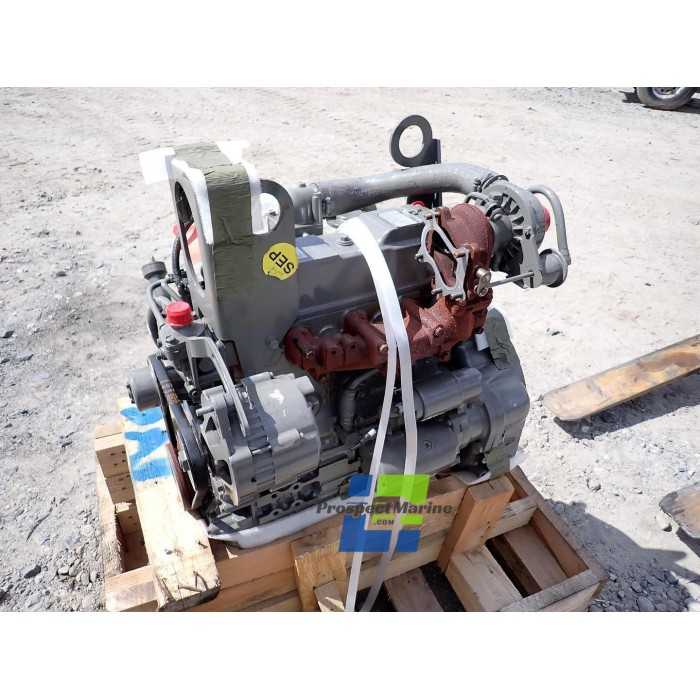

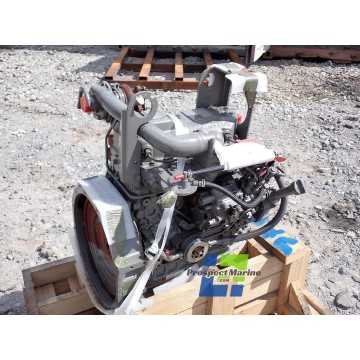

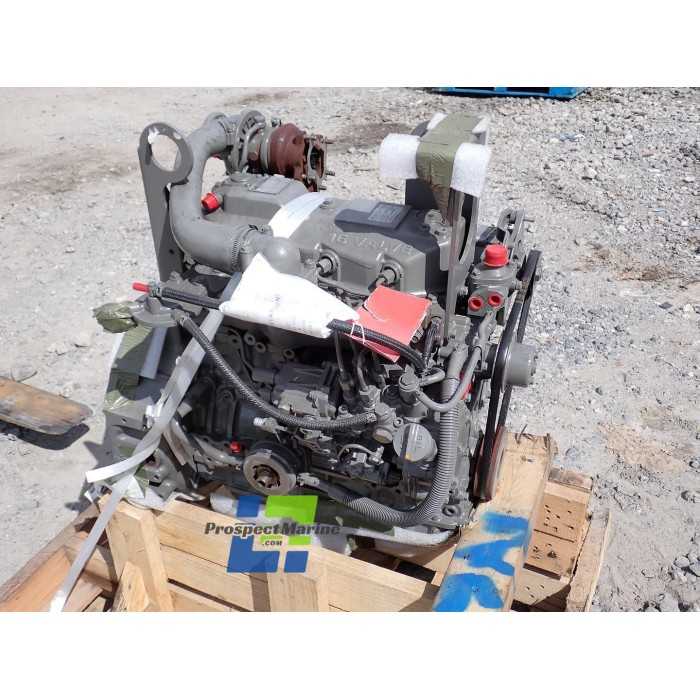

The Yanmar 4TNV84T-DFM is a 4-cylinder, 1.995-liter, turbocharged, water-cooled, direct injection diesel engine. It has a maximum output of 42.7 kW (57.3 HP) at 3000 RPM, and a standby output of 24.3 kVA at 1800 RPM.

Engine is fully mechanical & turbocharged, excellent for power unit builds, repowers, or to replace your worn out tractor or skidsteer engine.

Specifications

* Engine Model: 4TNV84T-DFM
* Engine Type: Vertical In-line 4-cycle Water-cooled Diesel Engine
* Combustion Chamber: Direct Injection Engine Type
* Air Intake System: Exhaust Gas Turbine Supercharging
* Displacement: 121.7 cu in.
* Rated Speed: 3000 RPM
* Specific Fuel Consumption: <= 281 ( 207)
* Compression Ratio: 18.9 (effective 17.2)
* Fuel Injection Timing: Fit 19+1/-1 Fir 4.0+1/-1
* Fuel Injection Pressure: 21.6 +0.98/ 0 (220.3 +9.99/ 0)
* Rotation Direction: Viewed From Flywheel Side Left
* Governor: Centrifugal All Speed Engine Type
* Cooling System: Radiator Cooling
* Lubricating System: Forcible Lubrication By Trochoid Pump
* Starter: Electric Startin(starting Motor 24vdc-4.0kw)
* Charger: Ic Regulator Built-in Engine Type (dc24v -35a)
* Oil Capacity: 1.5 gal. 0.6 gal.
* Coolant Capacity: 0.7 gal.
* Flywheel: 335ID mark XM48
* Oil Press Switch: 7.3 psi
* Fuel Filter: Water Separator
