Yanmar 6CX530 Marine Diesel Engine
$18,250.00

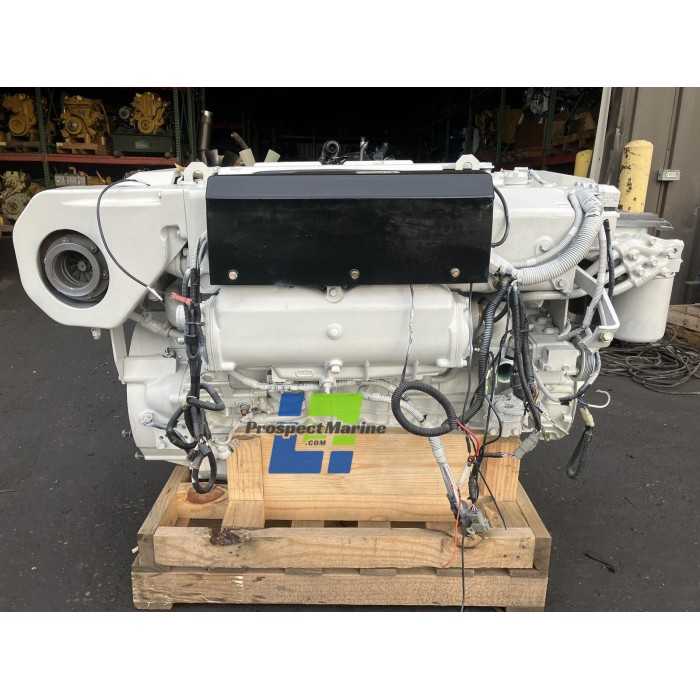

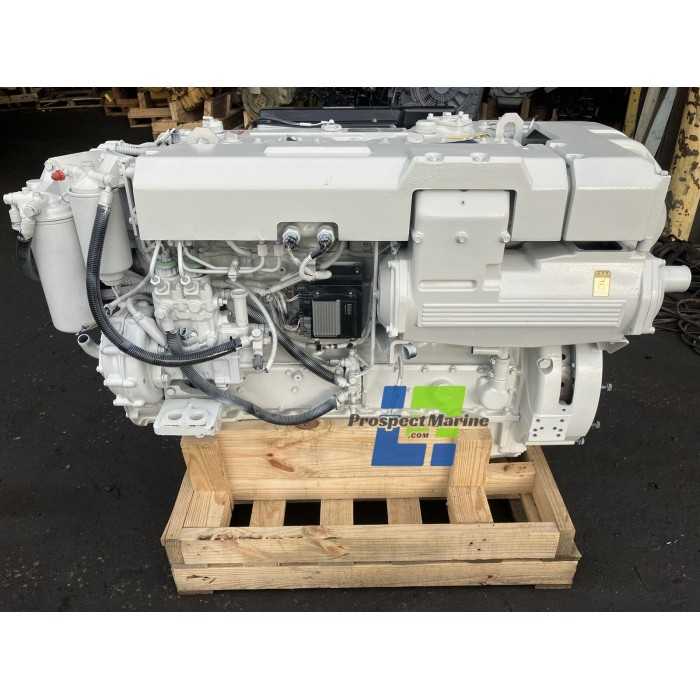

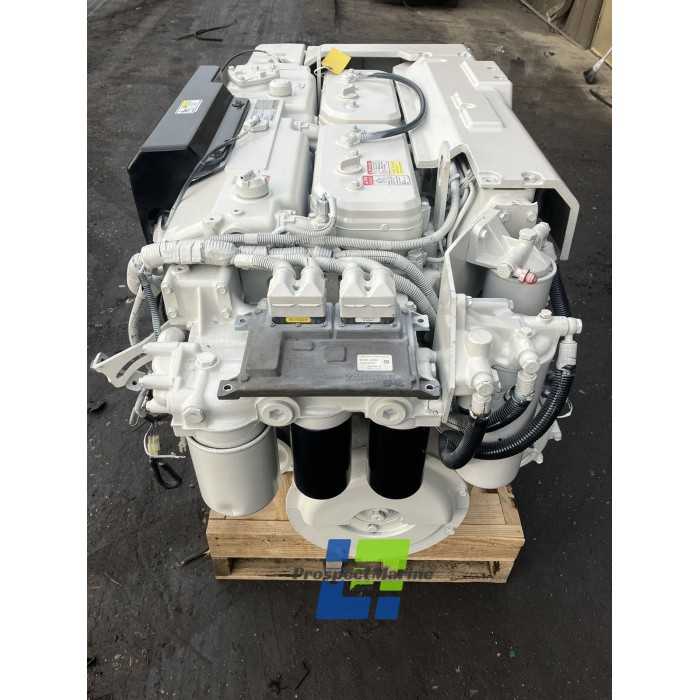

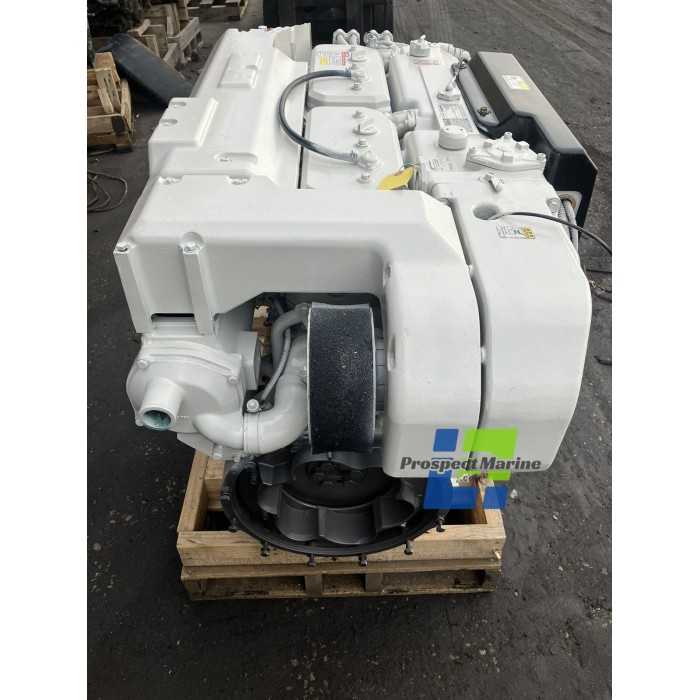

Used 2007 Yanmar 6CX530 Marine Diesel Engine Turbocharged 525HP For Sale
SecurityGuarantee Safe & Secure Checkout
Shipping & TaxWe Ship Worldwide - No Sales Tax
Estimated DeliveryUsually dispatched within 24 - 48 hours
The Yanmar 6CX530 is a 525 horsepower marine diesel engine with a 6-cylinder, 7.4-liter displacement. It's known for its compact size, high power-to-weight ratio, and electronic control system. The engine is also freshwater cooled and meets Tier 2 emission requirements.
Specifications
* Type: 6-cylinder, 4-stroke, vertical, water-cooled diesel engine.
* Displacement: 7.4 liters (452 cubic inches).
* Maximum Output: 390 kW (530 mhp) at 3000 rpm.
* Continuous Rating: 355 kW (482 mhp) at 2809 rpm.
* Bore x Stroke: 104 mm x 132 mm (4.10 in x 5.20 in).
* Combustion System: Direct injection, Bosch Common Rail System.
* Aspiration: Turbocharged & Intercooled.
* Cooling System: Freshwater cooling with a centrifugal fresh water pump and seawater pump.
* Starting System: Electric starting with a 12V or 24V system.
* Alternator: 12V - 90A or 24V - 70A.
* Dry Weight (without gear): 780 kg (1720 lbs).
* Dimensions (L x W x H): 1519 mm x 893 mm x 881 mm (59.8 in x 35.2 in x 34.7 in).
* Certifications: RCD 2, IMO Tier 2, EPA Tier 3, EPA Tier 3C, EMC.
* Fuel: Approved for HVO (Hydrotreated Vegetable Oil).
Data sheet
- Condition
- Used - Fully Serviced and Tested
- Year
- 2007
- Model Number
- 6CX530
- Engine (HP)
- 525 HP
- Made In
- Japan
- Warranty
- 6-Month
Built to Order Engines
Built To Order engines are built exclusively for you, hence delivery is dependent on build time. Contact us using the form below to enquire about lead times for building your engine & estimated delivery times.
In Stock Engines
In stock engines are ready built and available for immediate dispatch subject to any custom configuration requirements.
The fee for shipping depends on your location and any additional configuration requested. Please submit an enquiry using the form below and we’ll contact you to discuss options and confirm the final price based on your requirements.
