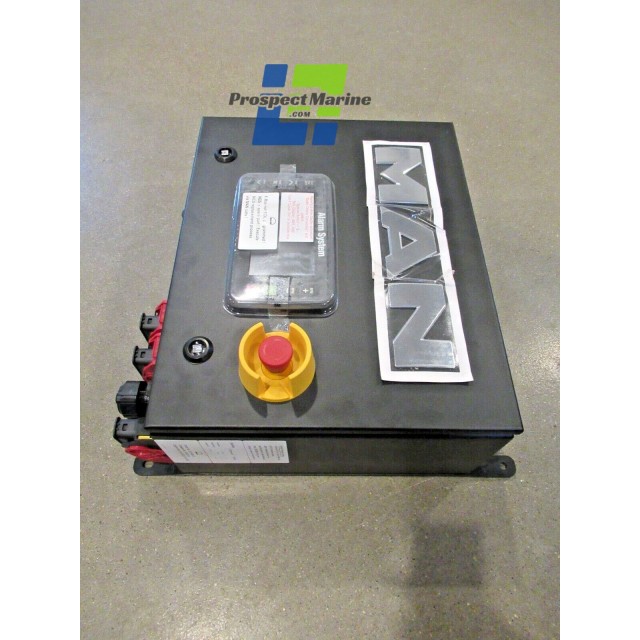

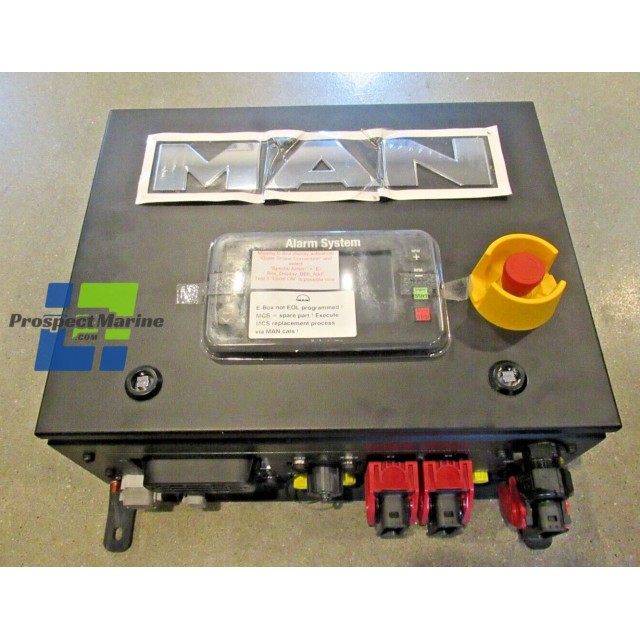

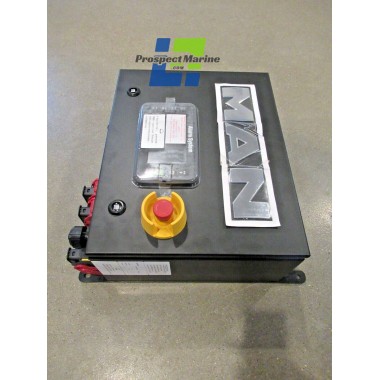

MAN 51.25413-6972 iSEA E-Box for Marine Engine

New in Original Factory (Open Box)

PN: 51.25413-6972
For Engine #: 51056788146566 / 510 5678 8146566
Motor/ Engine Model: 46327
EDC-SG #: 51.25836-7003, 51.25805-7020
Chassis Number: E092YLG

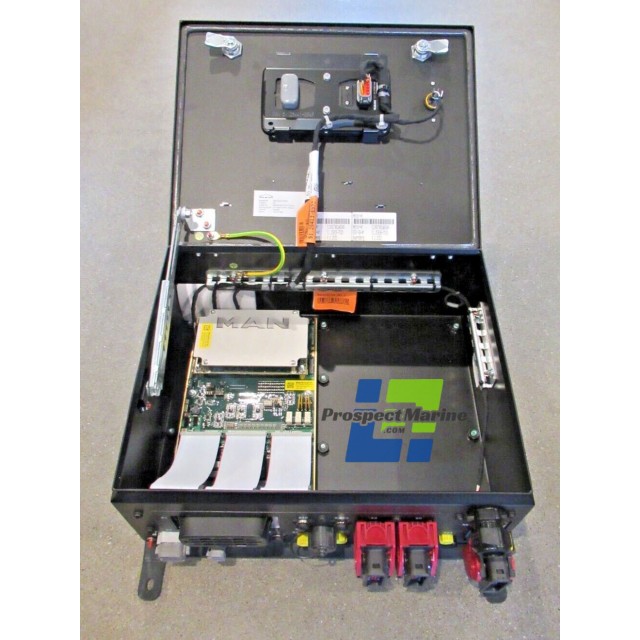

- The iSEA E‑Box (51.25413‑6972) is MAN Engines’ central electronics/control unit for marine engines—part of the iSEA system (“intelligent Safeguard of Engines and Auxiliaries”)

- Installed in the engine compartment, it:
  * Monitors critical engine data (coolant/exhaust temps, oil pressure, voltage, AdBlue quality, etc.)
  * Manages bridge inputs (start/stop, alarm ack)
  * Houses control electronics for the comfort throttle lever and alarm systems
- Benefits include saving bridge/engine-room space, reducing cables via CAN-bus, and enabling remote diagnostics via the optional Marine Web Interface.

Compatibility & Fitment
- Specifically for MAN engine chassis/model 46327, engine # 51056788146566, and EDC-SG #'s 51.25836‑7003 / 51.25805‑7020
- According to MAN, iSEA systems are available on current engine series like D2676, D2868, D2862—but retrofitting older engines isn't possible
- The E‑Box part number is 51.25413‑6972
