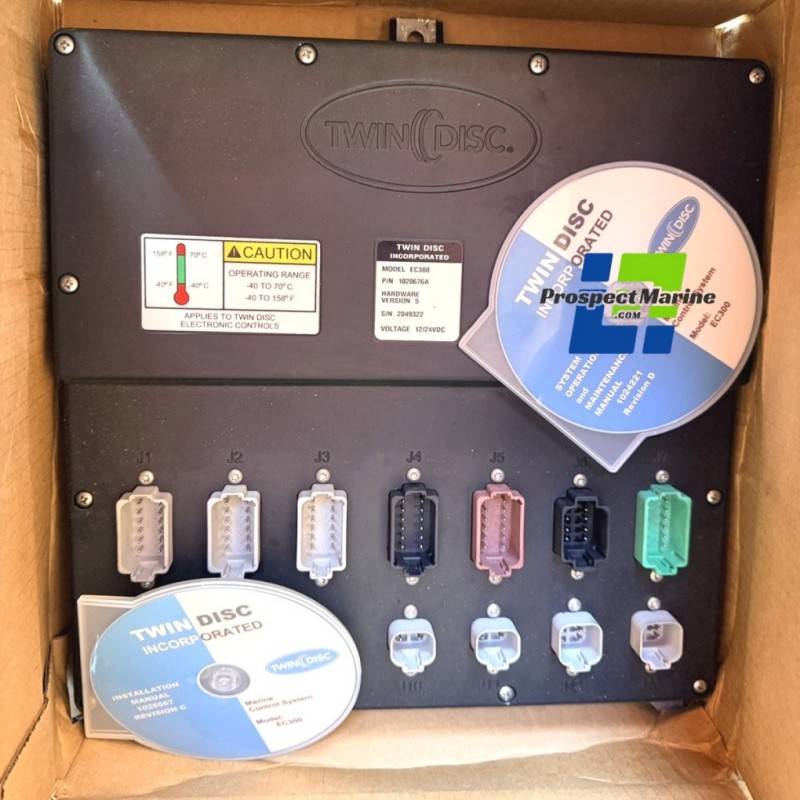

Twin Disc 1020676A EC300 Power Commander Controller

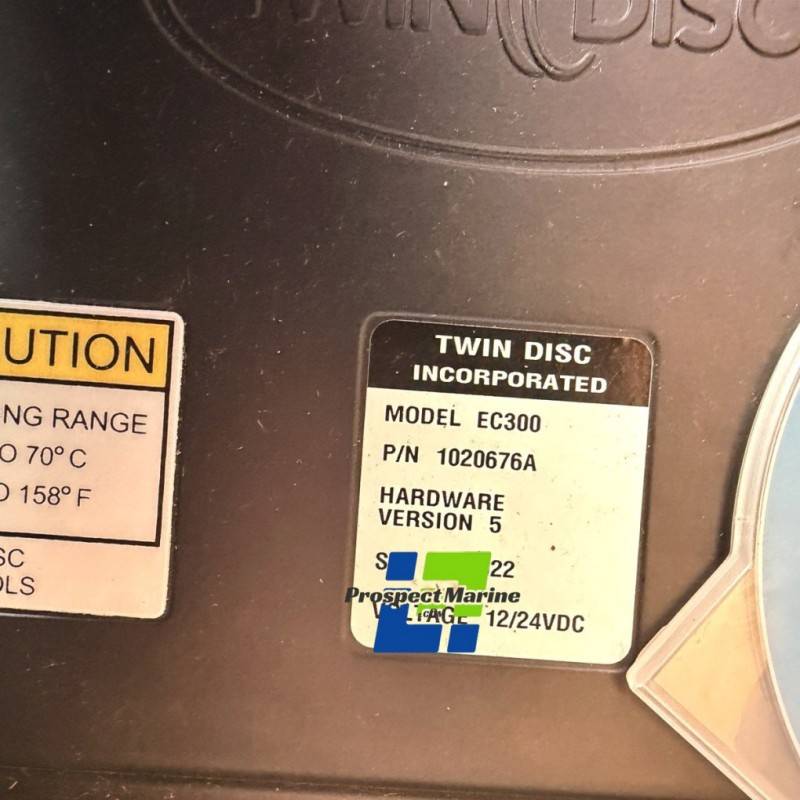

Twin Disc EC300 Power Commander Controller System Part Number : 1020676A

The EC300 provides for a number of configurable operational features; however all systems provide for active system monitoring, diagnostics and fault indication with event logging. An optional display is available for providing both operational data and system diagnostics.

Features & Benefits:

• Operate from 12VDC or 24VDC battery power
• Operating temperature range: -40° to 70°C
• J1939 CANBus interface includes operating status messages from the EC300
• LED Indicators for providing operational status as well as fault codes
• Alarm relay output for fault conditions
• Monitoring of engine speed to protect clutch during engagement process
• Special clutch engagement profile for controlled engagement process, to help ensure precise clutch engagement without overloading the engine or damaging the clutch
• Integrated brake control
• Monitoring oil pressure, temperature and filter (if installed)
• Actuator option for mechanically governed engine
