Kohler KDW 1003 Diesel Engine

Selling New Kohler KDW 1003 Liquid Cooled 4-Stroke Diesel Engine Complete Power Unit For Sale

Fast-acting fuel injection technology delivers the punch you need and fuel savings you expect. And our belt-driven, overhead camshaft delivers low-turbulence performance for near-silent operation.

Technical Specifications

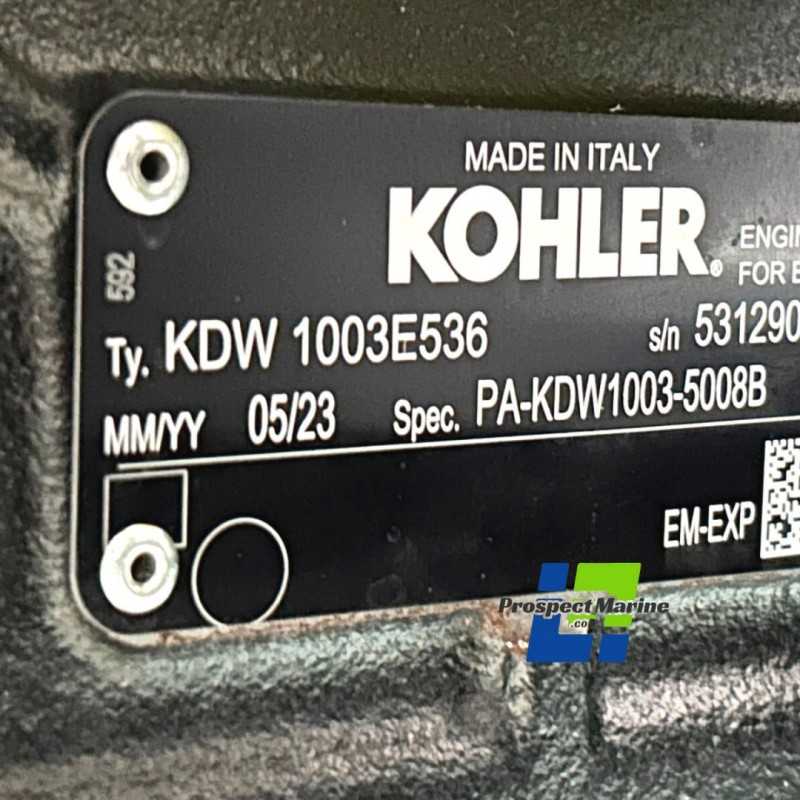

• Model : KDW1003 (PA-KDW1003-5008B)
• Engine Type : 4-Stroke Diesel Engine, In-Line 3 Cylinder
• Power : ~23.7 HP - 25.2 HP (17.7 kW - 18.8 kW) @ 3600 RPM
• Displacement : 1.028 Liters (62.7 cu in)
• Max Torque : 50.0–67 Nm @ 2000–2600 RPM
• Bore x Stroke : 75 mm x 77.6 mm (3 x 3.1 in)
• Dry Weight : 85 kg (187 lbs)
• Oil Capacity : 2.4 L (2.5 U.S. qts)
• Cooling : Liquid Cooled (with axial fan)
• Dimensions (L x W x H) : ~513 x 412 x 515 mm (20.2 x 16.2 x 20.3 in)
• Fuel System : Indirect Injection
• Rotation : Counter-clockwise (from PTO side)
• Warranty: 3 Year Limited Warranty

Features & Applications

• Structure: Cast-iron crankcase with re-borable cylinders and aluminum cylinder head
• Lubrication: Full-pressure with full-flow filter
• Common Uses: Mini-excavators, wheel loaders, rollers, generators, and access platforms

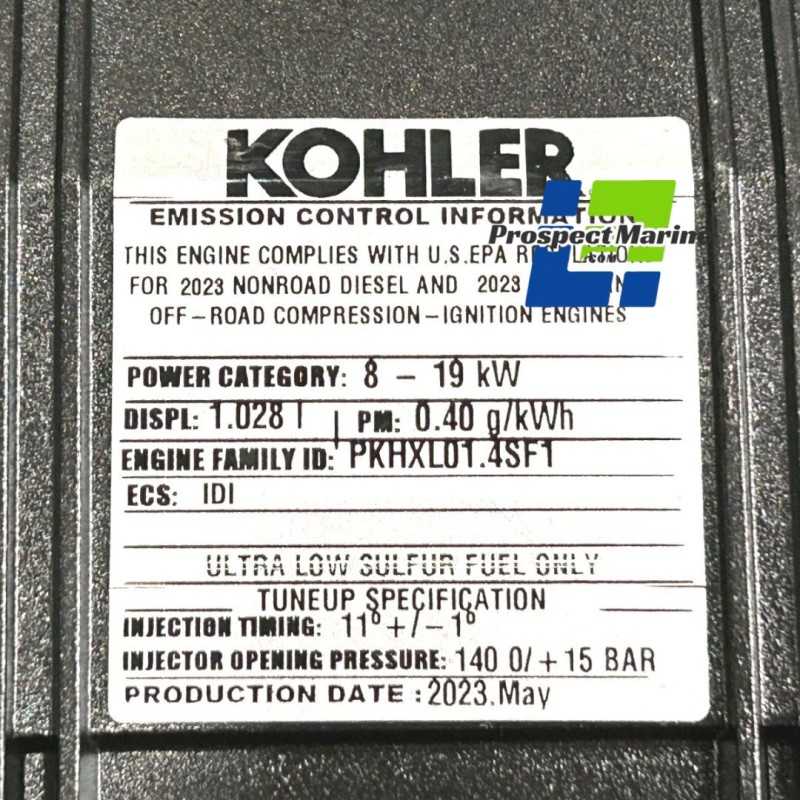

• Emissions: EPA/CARB and Stage V/Tier 4 Final
• System: 12V Electric Start

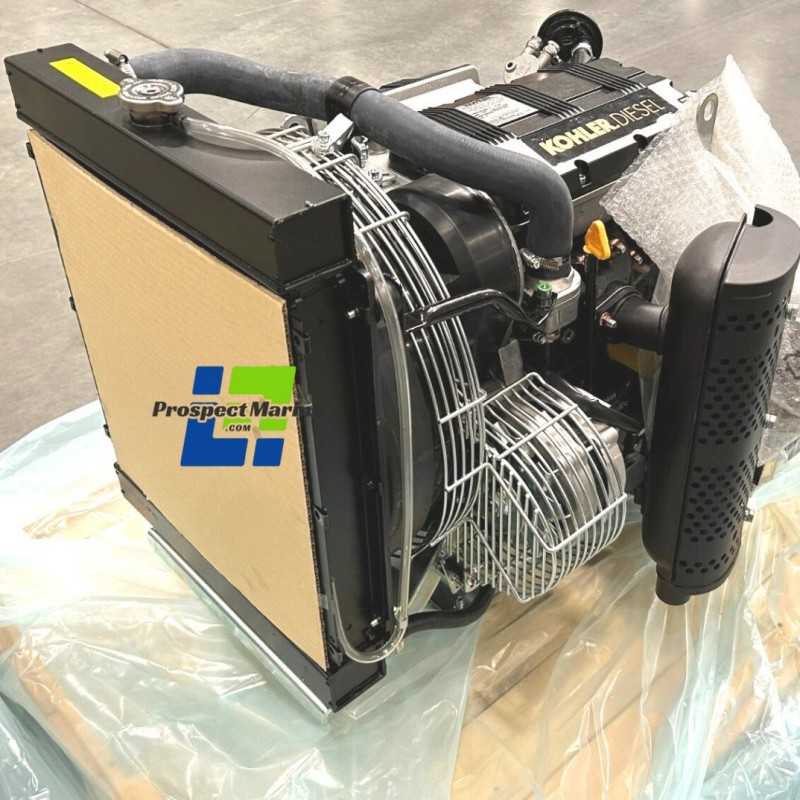

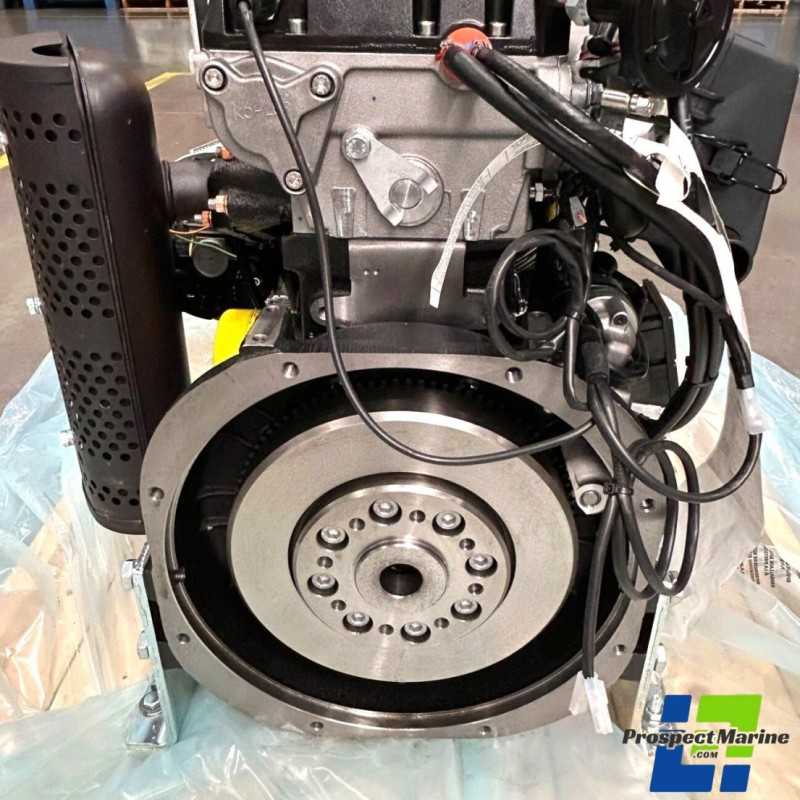

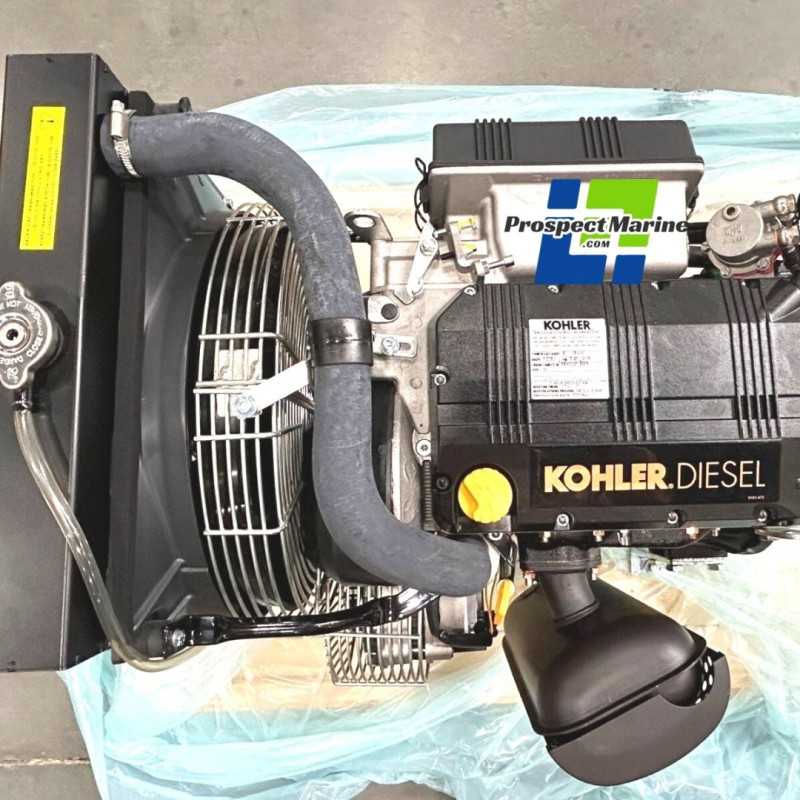

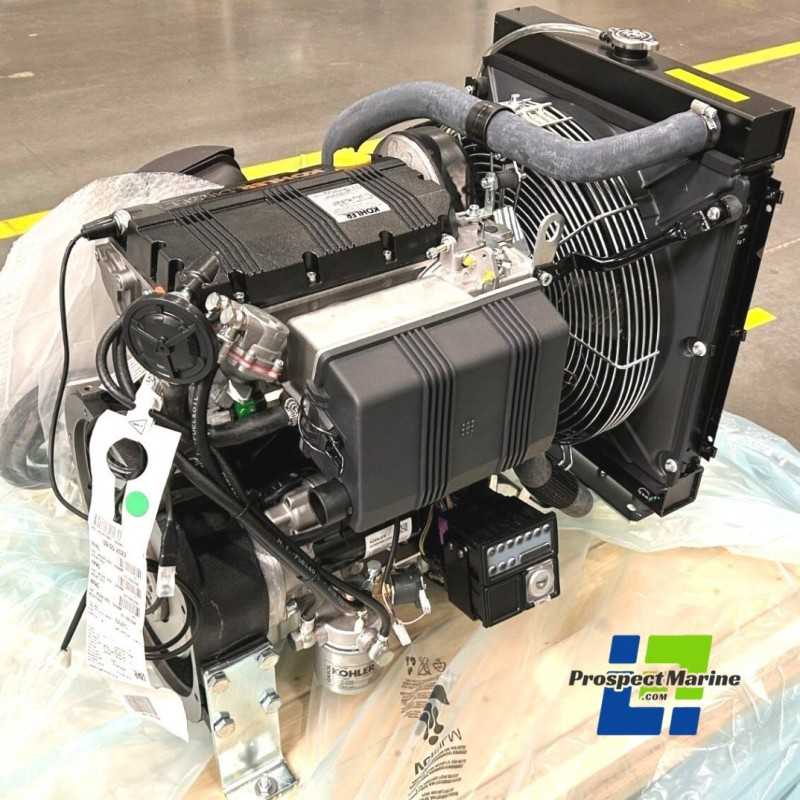

Kohler KDW1003 4-Stroke Water Cooled 3 Cylinder Diesel Engine 23.7 HP

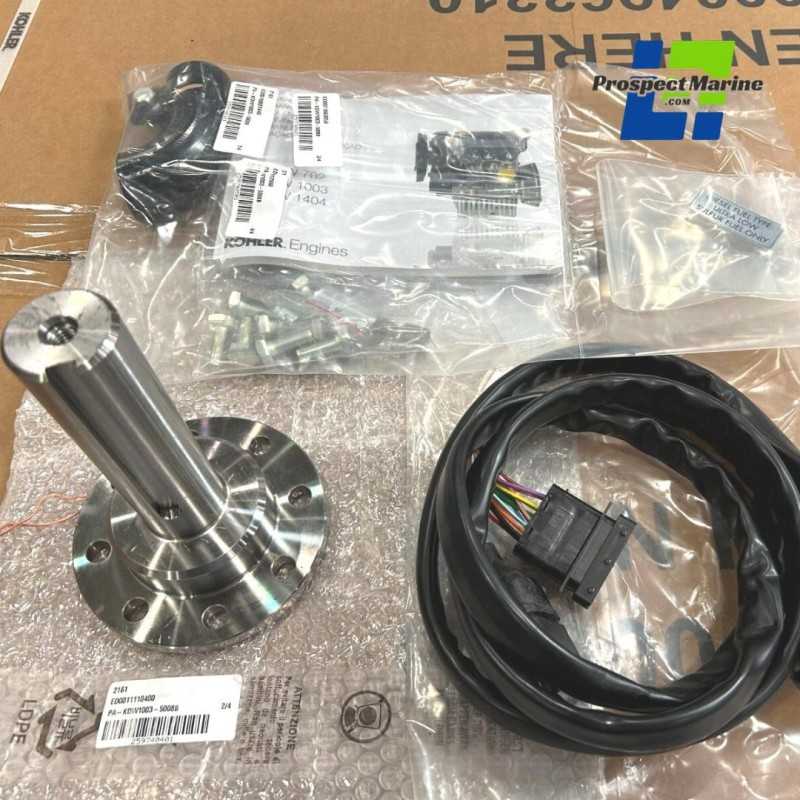

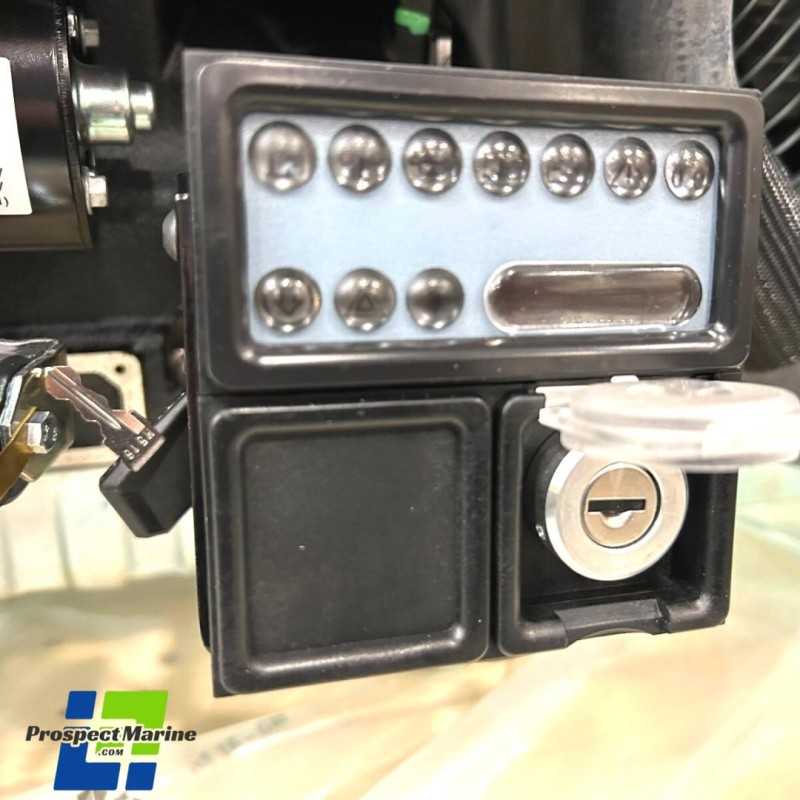

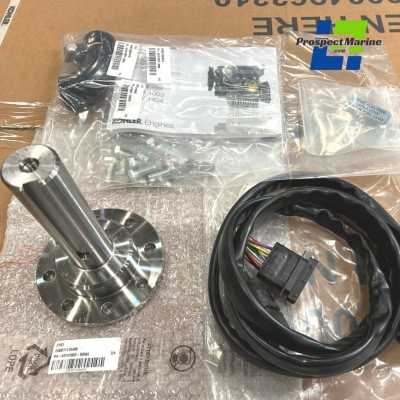

Complete Power Unit with Radiator, Control Panel, Muffler, 1-1/2” Dia. Bolt-on Shaft, etc. PA-KDW1003-5008B

This Engine Powers The Following Equipments

• 4x4 Tractor
• Aerial Platform
• Asphalt Cutter
• Cement Mixer
• Compact Shovel Loader
• Dumper
• Farm Machinery
• Fruit Harvester
• Generator
• Mini Dumper
• Mini Excavator
• Motor Compressor
• Refrigerating Groups
• Sweeper
• Welder
