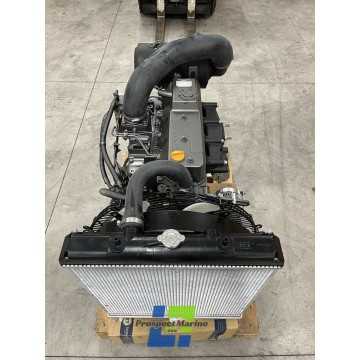

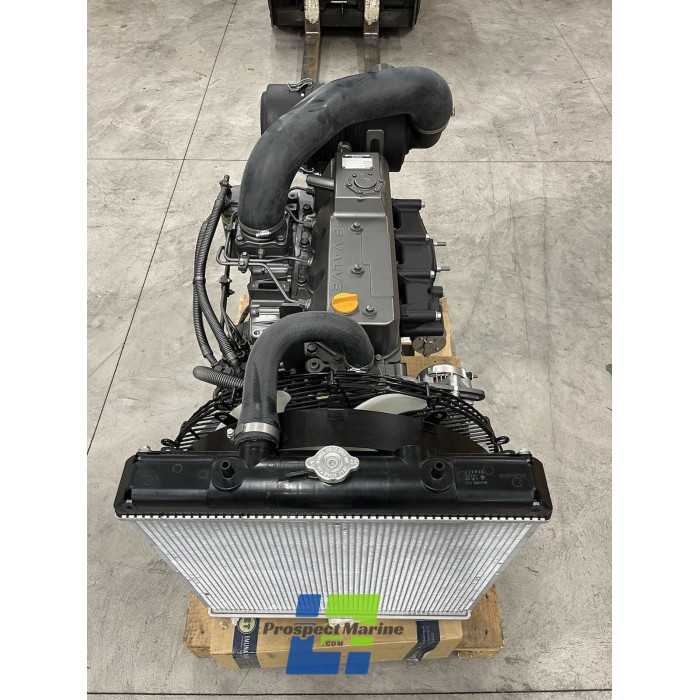

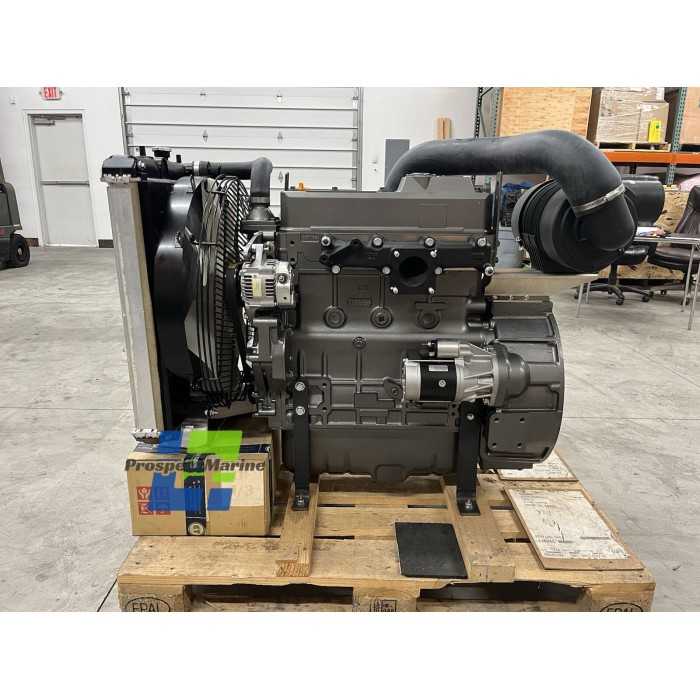

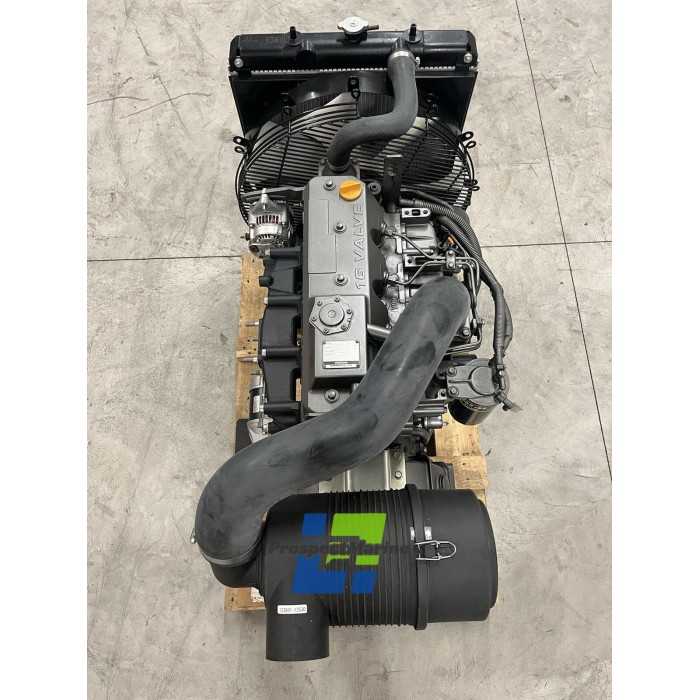

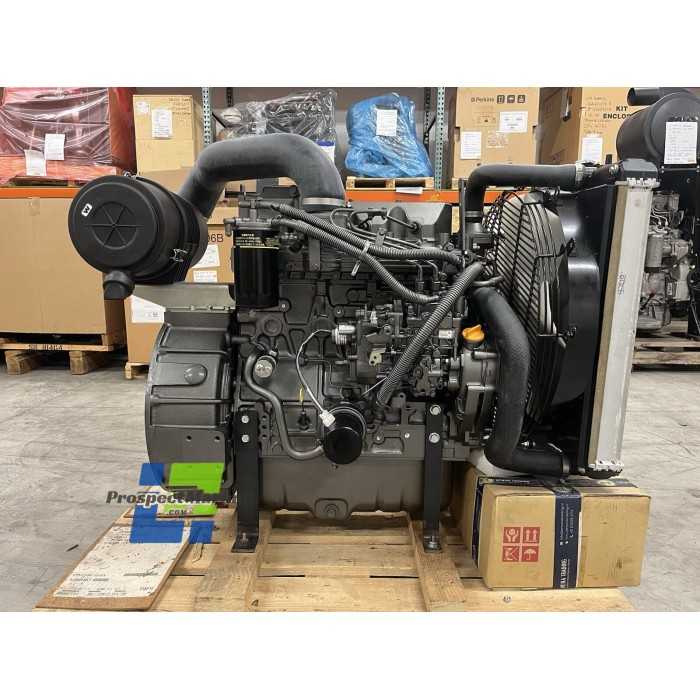

Yanmar 4TNV106-GGEA Diesel Engine

Yanmar 4TNV106-GGEA is a 4-cylinder, naturally aspirated, mechanical injection, constant speed diesel engine. It has a displacement of 4.412 liters and is offered with a starter, alternator, fan, flywheel, air cleaner, and radiator. It produces 49.4kW (66.2hp) at 1500rpm and 58.7kW (78.7hp) at 1800rpm.

Specifications

* Type: 4-cycle, inline, water-cooled diesel engine.
* Number of cylinders: 4.
* Bore and Stroke: 106 x 125 mm.
* Displacement: 4.412 liters.
* Combustion system: Direct injection.
* Compression ratio: 18.
* Rated Output: 49.4 kW (67.2 PS) / 1500 rpm, 58.7 kW (79.8 PS) / 1800 rpm.
* Continuous Rating: 44.9 kW (61 PS) / 1500 rpm, 53.3 kW (72.5 PS) / 1800 rpm.
* Specific Fuel Consumption: 237.6 g/kW-h (175 g/PS-h) at rated output.
* Governor: Centrifugal, all-speed governor.
* Firing order: 1-3-4-2.
* Direction of rotation: Counterclockwise when viewed from the front.
* Engine dry weight: Approximately 330 kg.
* Fuel: Diesel oil.
* Fuel injection pump: Distributor type (YPD-MP4), Yanmar made.
* Lubrication system: Forced feed.
* Oil grade: API class CD, SAE grade 10W30.
* Oil capacity: 14 liters (max), 9 liters (effective).
* Cooling system: Water-cooled.
* Starting system: Electric (12V) with starter.
* Generator: 12V-60A.
* Air cleaner: Double element type.
* Muffler: Yes.
* Starting aid: Air heater (1000W).
