ZF 220 Ratio 3.0:1 Marine Transmission Gearbox

ZF Hurth 3205002010 - ZF 220 Ratio 3.0:1 Marine Boat Transmission Gearbox IRM 220PL

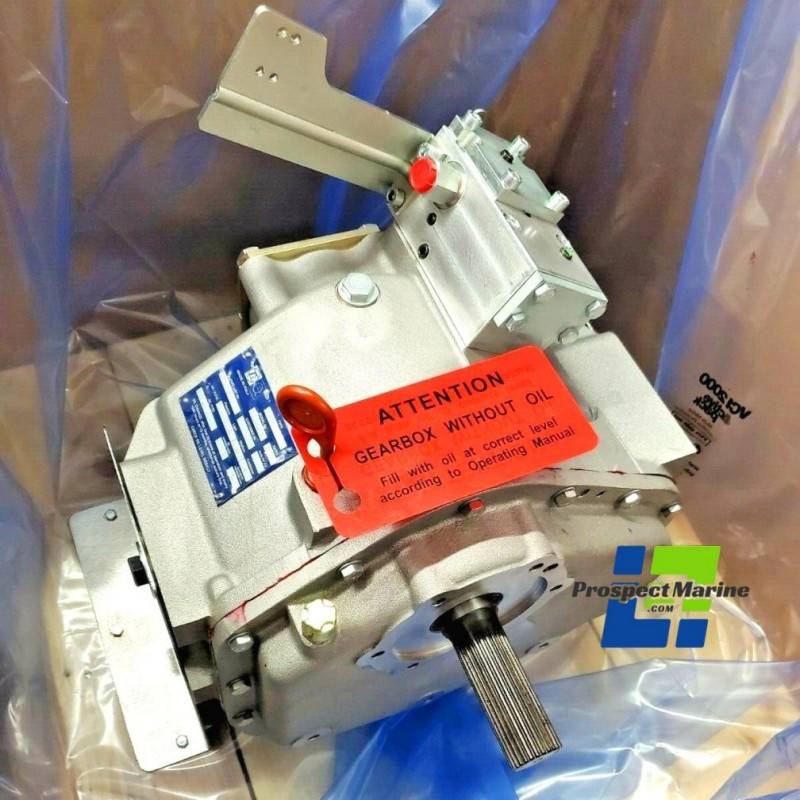

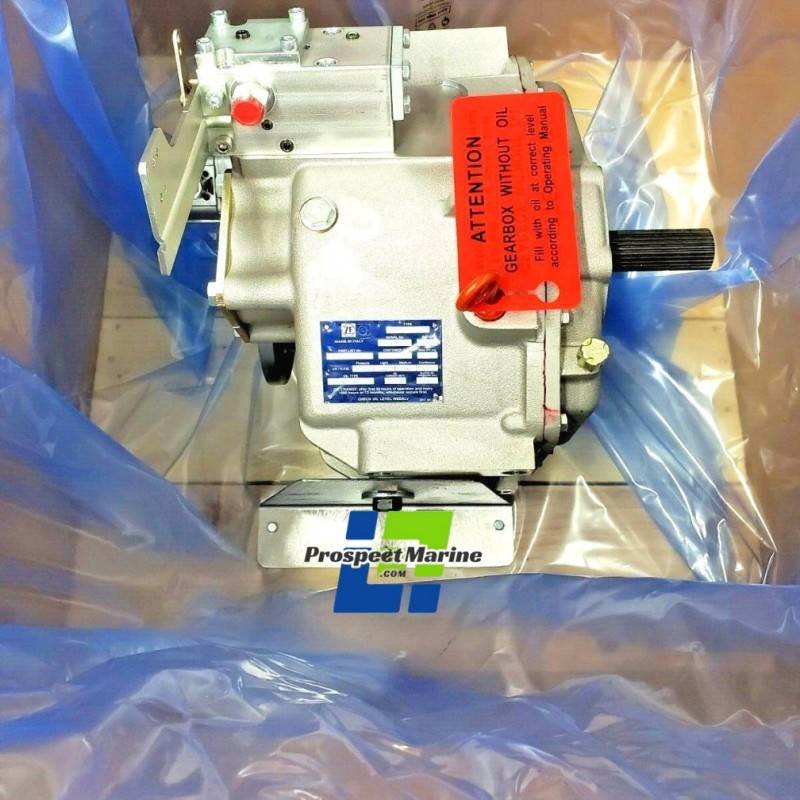

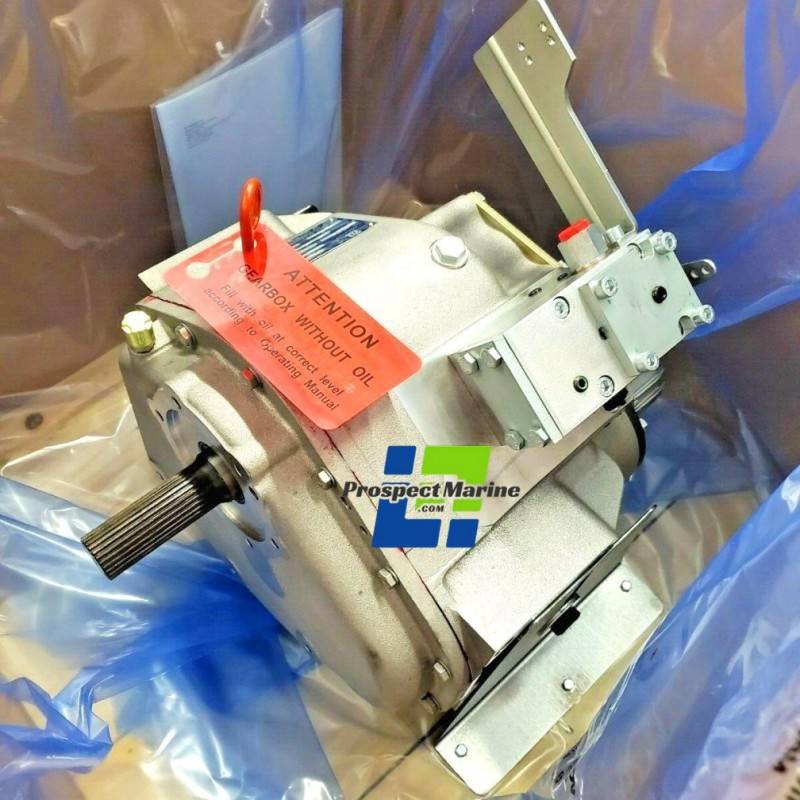

This new and unpainted ZF 220 3.00:1 marine transmission. Part number 3205002010.

• Robust design also withstands continuous duty in workboat applications
• Fully works tested, reliable and simple to install
• Design, manufacture and quality control standards comply with ISO 9001
• Compatible with all types of engines and propulsion systems, including waterjets and surface- piercing propellers, as applicable
• Suitable for high performance applications in luxury motoryachts, sport fishers, express cruisers etc
• Reverse reduction marine transmission with hydraulically actuated multi-disc clutches

Features

• Lightweight and robust aluminum alloy casing (sea water resistant)
• Case hardened and precisely ground gear teeth for long life and smooth running
• Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead
• Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable
• Suitable for twin engine installations (same ratio and torque capacity in ahead or astern mode)

Specifications

• Gear Ratio: 3.000:1
• Mechanical Shift
• No Down Angle, 0 Degree
• For standard-rotation engines only (same as automotive rotation)
• Can be shifted either direction for forward (fully-reversing)
