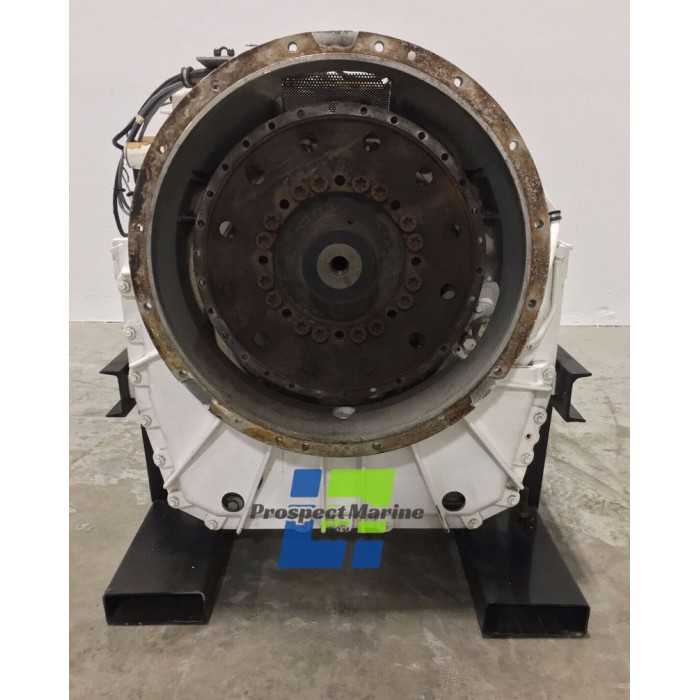

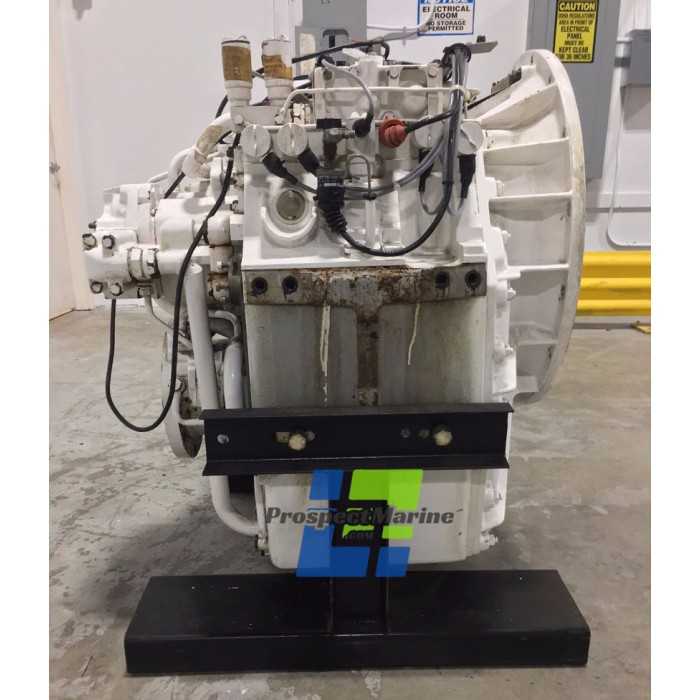

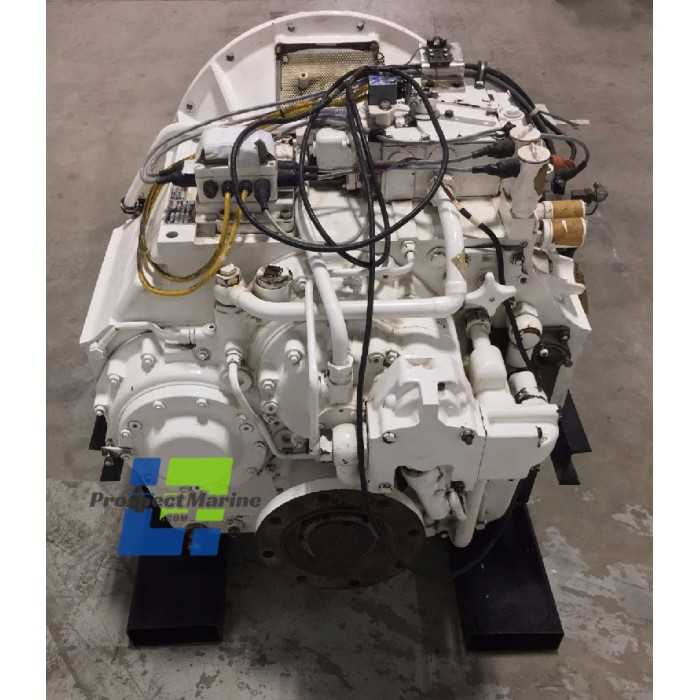

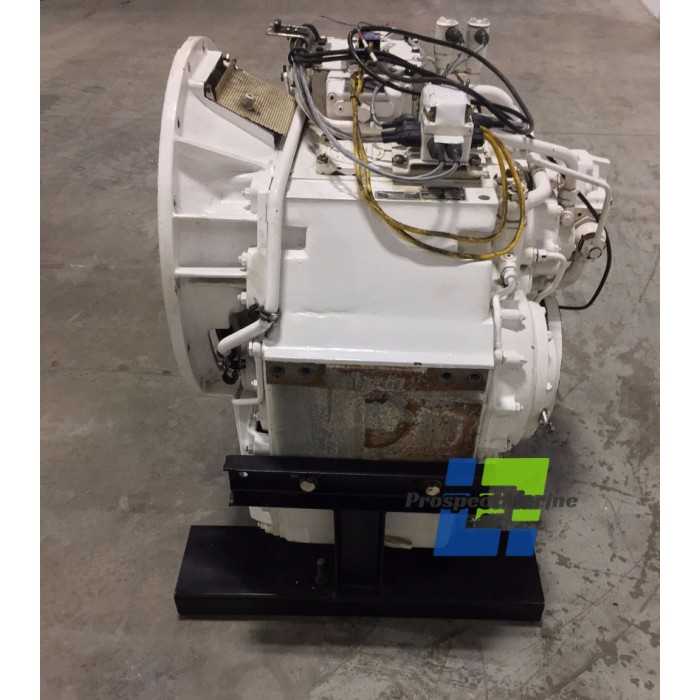

ZF BW 455 Marine Transmission 3.138:1 Ratio

ZF Marine BW 455 Transmission 3.138:1 Ratio Gearbox

Description
* Approximate power rating: Used versions have been rated for up to 2,492 horsepower at 2,500 RPM. The exact power rating is dependent on the engine application and duty cycle (e.g., continuous vs. pleasure use).
* Design: The BW 455 is a reversing reduction marine transmission that uses hydraulically actuated multi-disc clutches for smooth and reliable shifting.
* Case and gearing: The robust design features a corrosion-resistant aluminum alloy casing, with case-hardened and precision-ground gears for durability.
* Output: It has an output shaft thrust bearing designed to handle maximum propeller thrust.
* Bell housing: Listings for used units often specify a large SAE bell housing, such as an SAE #0

Model No: BW 455
Part List No: 3083002029
Reference No: 0102802202
Ratio: 3.138:1
Vertical Offset
Straight Output Shaft
SAE Bell Housing #0
Rating: 2492 HP @ 2500 RPM
Weight: 850 kg
Oil Capacity (dm3): 60
Nominal Clutch Oil Pressure: 14 bar
