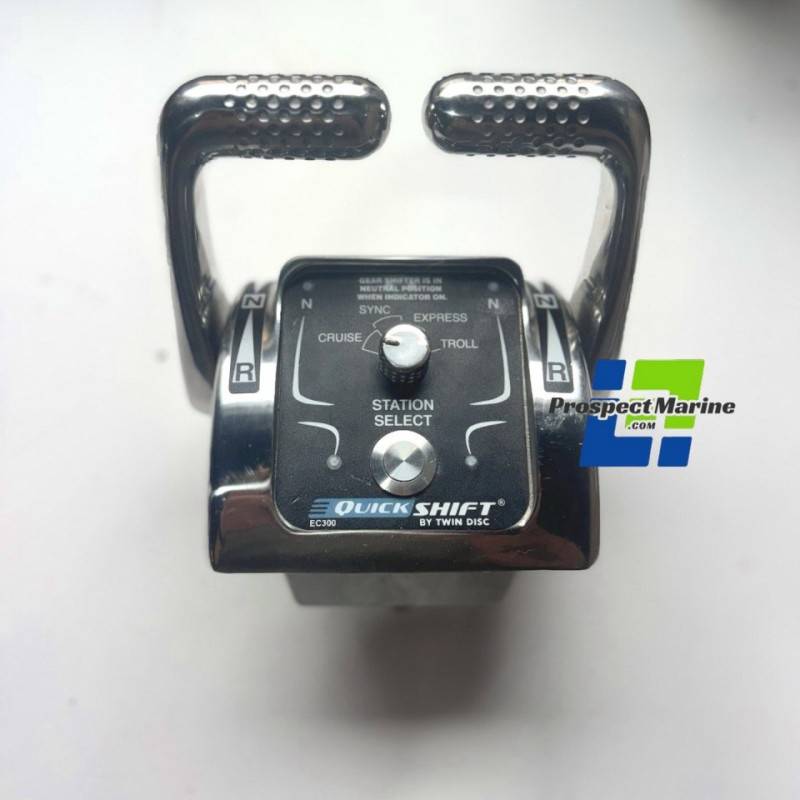

Twin Disc 1023463G EC300 Quick Shift Control Head

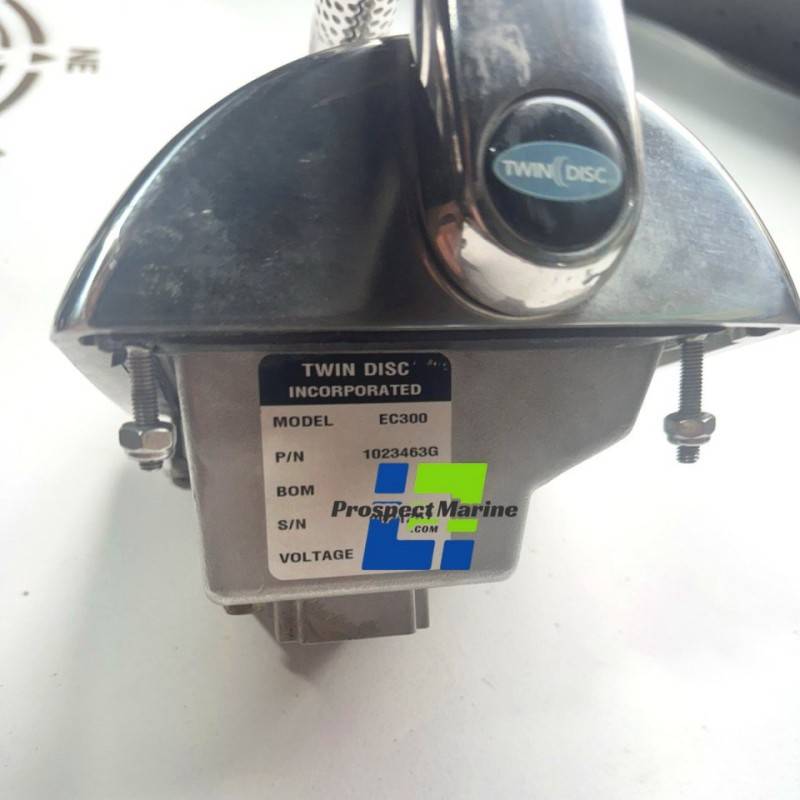

This Used Good Condition Twin Disc EC300 Quick Shift Dual Lever Throttle Control Head Part Number 1023463G

EC300 Digital Control Head

Enhanced reliability with hall effect lever position sensors

For use with EC300 Power Commander propulsion control systems.

Features & Benefits:

• Rugged, sealed, commercial grade product
• Longest shifting life available with contactless hall effect sensors (not available in side mount style)
• Polished stainless steel housings for dual lever control head and side mount selector panel (also available with black powder coat finish)
• Anodized aluminum side mount lever boxes
• Dual lever control head available with optional tall handles
• Dash cutout and mounting plate identical to EC300 analog control head
• Up to 8 digital stations possible, without the need for an adapter or expansion box
• Independent/isolated PORT and STBD CAN buses provide propulsion control redundancy
• Dual Bus Technology: EC300 Systems can be configured with 2 CAN buses per propulsion control for increased redundancy; Bus #1 for primary stations, Bus #2 for secondary stations

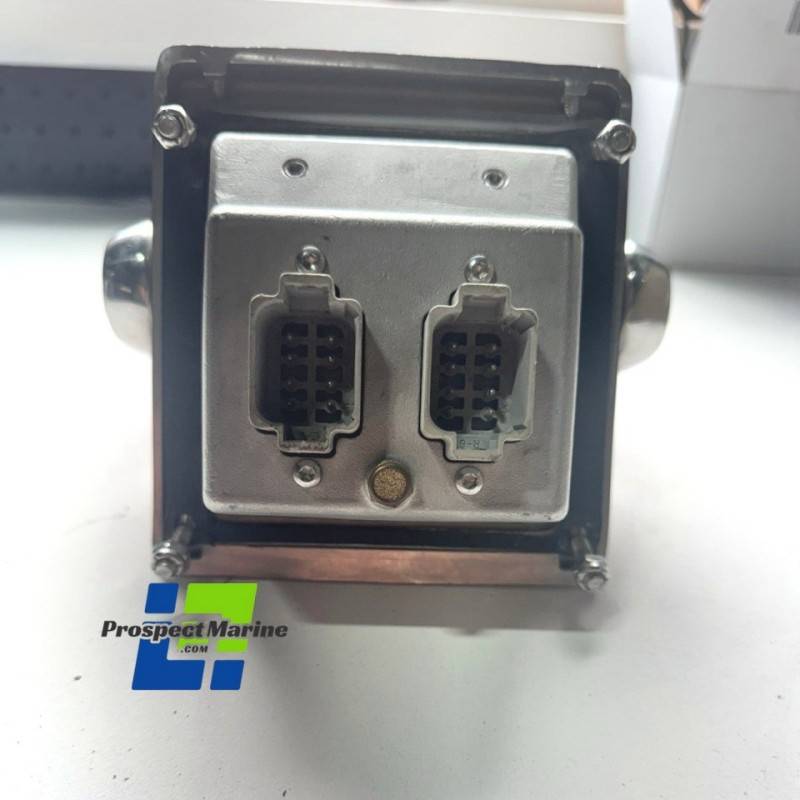

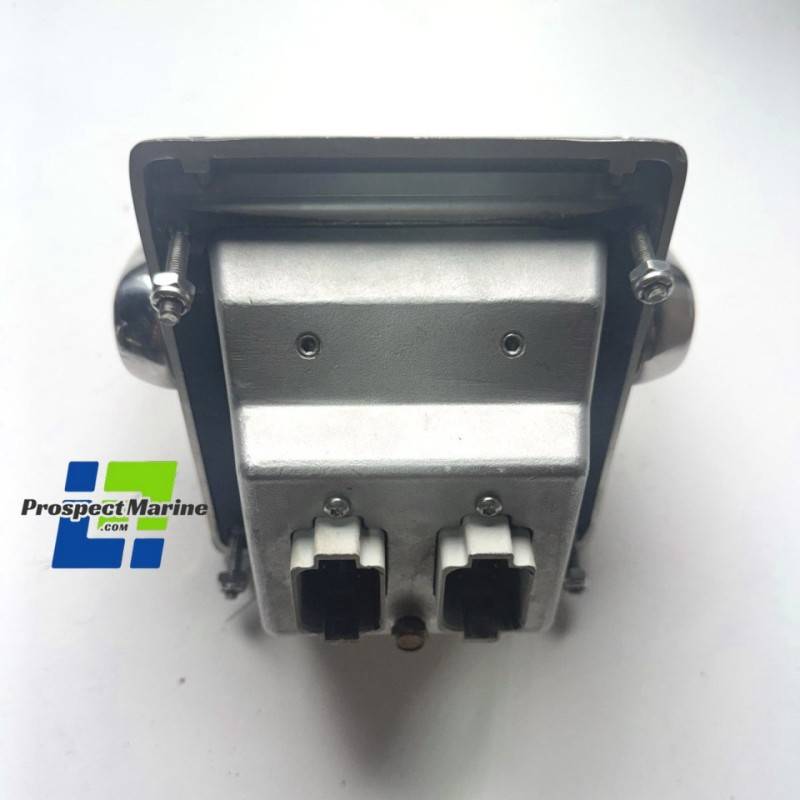

Each control head has PORT and STBD auxiliary connectors for optional features:

• EXTERNAL AUDIBLE ALARM: For station transfer indication as well as selectable fault conditions
• THROTTLE LIMIT: Limits operator to most economical maximum engine speed
• STATION LOCKOUT 1: Prevents activation of associated station
• STATION LOCKOUT 2: Prevents taking command away from active station (ABS/USCG)
• PTO ENABLE: Remote activation of clutched PTO device
• CLUTCH LOCKOUT/FIFI: Disables gear engagement while maintaining throttle control for FIFI pumping
• LED DIMMER: External potentiometer interface to adjust control head LED indicator brightness
• THRUSTER SWITCH: Allows for side mount levers with integral bow thruster switch
