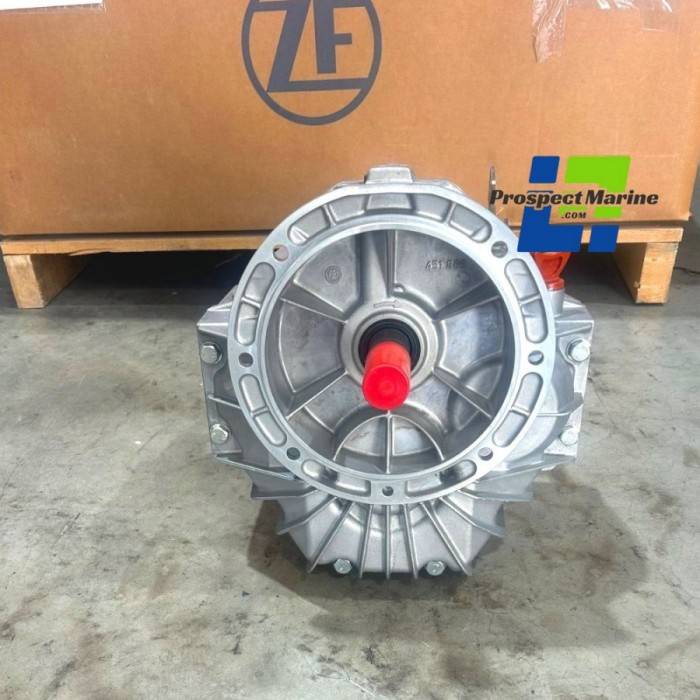

ZF 68 A Gearbox Marine Transmission

Selling New ZF 68 A Gearbox Marine Boat Transmission On Sale

Completely tested, reliable and simple to install. The ZF 68 A is a reverse reduction gearbox with hydraulically operated multi-plate clutches.

New and unpainted ZF 68A Gearbox marine transmission. The ZF 68A supersedes and replaces the ZF 63A and Hurth HSW630A. It has internal improvements to reduce gear noise and is the same externally for direct interchangeability.

Description

• ZF 68-A is available in multiple gear ratios; 8° down angle and 100% power in forward or reverse rotation.
• Reverse reduction marine transmission with hydraulically actuated multi-disc clutches
• Suitable for high performance applications in motoryachts, sport fishers, express cruisers etc
• Fully works tested, reliable and simple to install
• Design, manufacture and quality control standards comply with ISO 9001
• Compatible with all types of engines and propulsion systems, including waterjets and surface- piercing propellers, as applicable.

Features

• Lightweight and robust aluminum alloy casing (sea water resistant)
• Case hardened and precisely ground gear teeth for long life and smooth running
• Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead
• B/W connection integrated with casing
• Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable
• Suitable for twin engine installations (same torque capacity in ahead or astern mode. Reduction Ratios in ahead or astern are very close.)
• Replaceable oil filter cartridge
• Compact, space saving design; 8° vee-angle and beveloid gear

Gear Ratios Available:

• ZF 68 A Gearbox Ratio : 1.22    Ratio “A” 1.22:1    Ratio “B” 1.21:1    ZF Part Number 3312001201
• ZF 68 A Gearbox Ratio : 1.56    Ratio “A” 1.56:1    Ratio “B” 1.58:1    ZF Part Number 3312001202
• ZF 68 A Gearbox Ratio : 2.04    Ratio “A” 2.04:1    Ratio “B” 2.10:1    ZF Part Number 3312001203
• ZF 68 A Gearbox Ratio : 2.52    Ratio “A” 2.52:0    Ratio “B” 2.54:0    ZF Part Number 3312001204
• ZF 68 A Gearbox Ratio : 2.70    Ratio “A” 2.68:1    Ratio “B” 2.71:1    ZF Part Number 3312001205

Transmission Specifications :

• 8 Degree Down Angle
• Oil Filter Included
• Mechanical Shift (contact for electric shift availability)
• For standard-rotation engines only (same as automotive rotation)
• Can be shifted either direction for forward (fully-reversing)
• Output coupler has both 4 and 8 bolt pattern, with 4-1/4" bolt center-to-center diameter

Owner's manual included. Does not come with any accessories.
