ZF 68 IV Marine Transmission

Selling New ZF 68IV V-Drive Marine Transmission Mechanical Gearbox For Sale

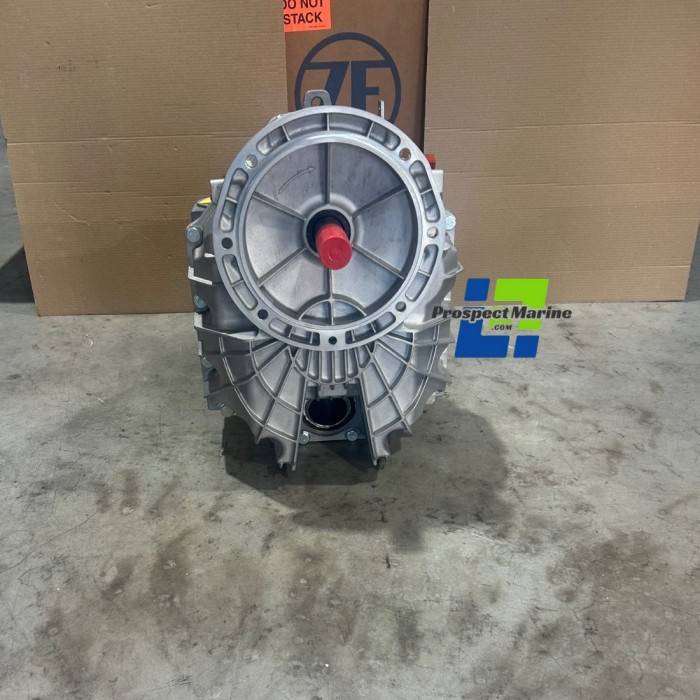

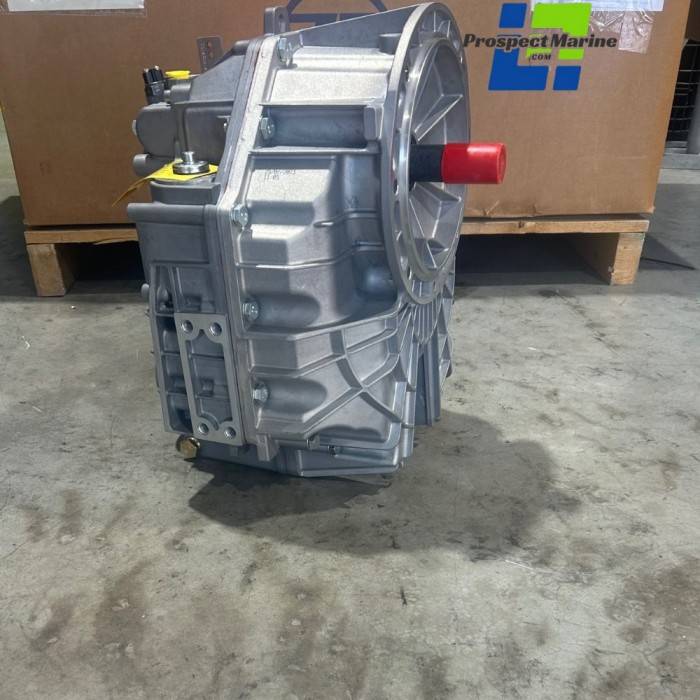

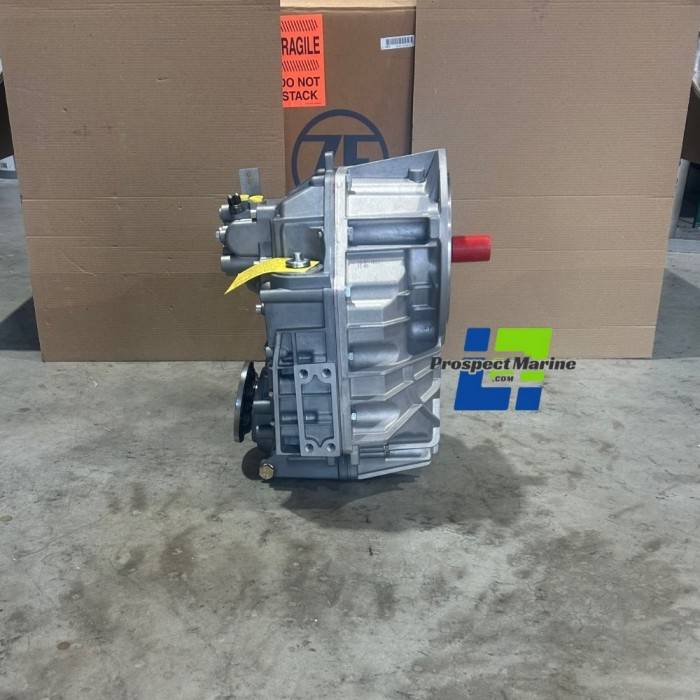

New and unpainted ZF 68IV Gearbox Marine Transmission V-Drive. The ZF 68IV is a lightweight, aluminum reverse-reduction V-Drive marine transmission built for smooth operation and high performance. It directly supersedes the ZF 63IV and Hurth HSW630V models, featuring internal gear refinements that reduce noise while maintaining identical exterior dimensions for easy drop-in replacement.

Description

• ZF 68-IV is available in multiple gear ratios; 12° down angle and 100% power in forward or reverse rotation.
• Reverse reduction marine transmission with hydraulically actuated multi-disc clutches
• Suitable for high performance applications in motoryachts, sport fishers, express cruisers etc
• Fully works tested, reliable and simple to install
• Design, manufacture and quality control standards comply with ISO 9001
• Compatible with all types of engines and propulsion systems, including waterjets and surface- piercing propellers

Features

• Lightweight and robust aluminum alloy casing (sea water resistant)
• Case hardened and precisely ground gear teeth for long life and smooth running
• Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead
• B/W connection integrated with casing
• Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable
• Suitable for twin engine installations (same torque capacity in ahead or astern mode. Reduction Ratios in ahead or
• astern are very close.)
• Replaceable oil filter cartridge
• Compact, space saving design; 12° vee-angle and beveloid gear

This NEW ZF-68-IV V-Drive transmission is compatible with all 3.0L, 4.3L, 5.0L, 5.7L, 6.0L, 7.4L, 8.1L, and 8.2L engines and propulsion systems rated at 475 hp or less.

Formerly known as the ZF-63-IV

Gear Ratios Available:

• ZF 68IV Gearbox Ratio : 1.29    Ratio “A” 1.294:1    Ratio “B” 1.288:1   ZF Part Number 3312003206
• ZF 68IV Gearbox Ratio : 1.56    Ratio “A” 1.560:1    Ratio “B” 1.567:1   ZF Part Number 3312003207
• ZF 68IV Gearbox Ratio : 1.74    Ratio “A” 1.746:1    Ratio “B” 1.749:1   ZF Part Number 3312003208
• ZF 68IV Gearbox Ratio : 1.99    Ratio “A” 1.992:1    Ratio “B” 2.003:1   ZF Part Number 3312003209
• ZF 68IV Gearbox Ratio : 2.47    Ratio “A” 2.477:1    Ratio “B” 2.528:1   ZF Part Number 3312003210

Transmission Specifications:

• 12 Degree Down Angle
• Oil Filter Included
• Mechanical Shift (please contact for electric shift availability)
• For standard-rotation engines only (same as automotive rotation)
• Can be shifted either direction for forward (fully-reversing)

Owner's manual included. Does not come with any accessories.
